* Processor: Samsung ARM9 S3C2416 @ 400MHz
* RAM: 128MB
* Storage: 256MB/512MB/1GB

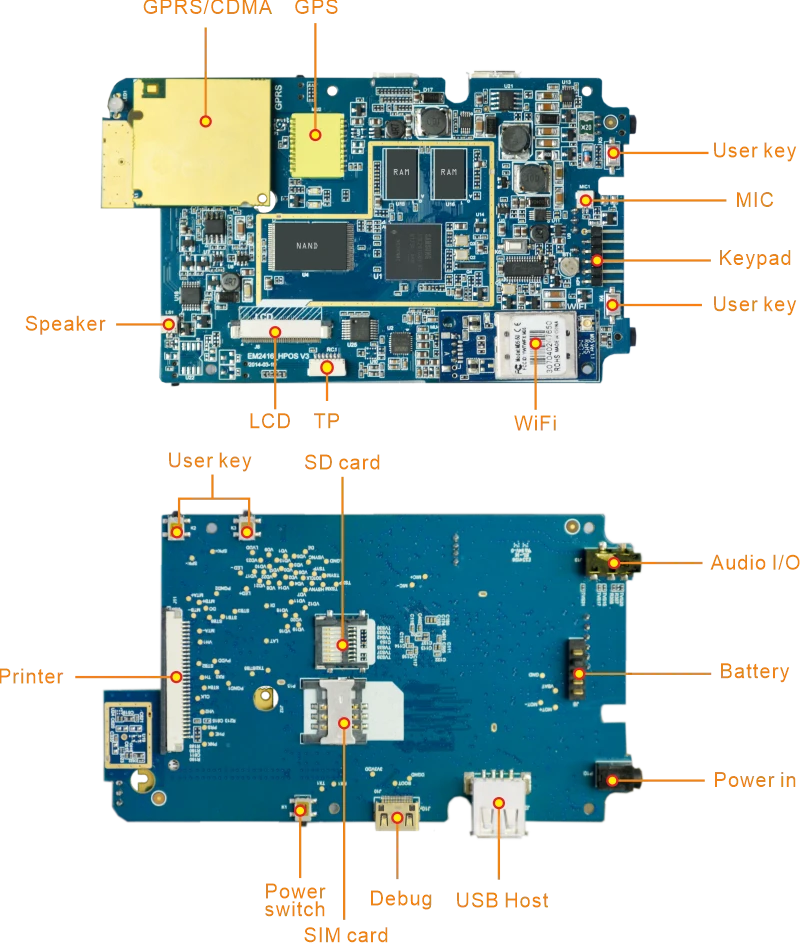

* Interface: 3x serial ports(for GPS, GPRS/CDMA, Debug), Audio, Microphone, LCD, SPK, Printer, Micro SD, SIM, Battery connector
* Operating system: Linux 2.6.21, WinCE6.0
* Dimensions: 190 x 84 x 42 mm
EM2416 hand-held POS is based on Samsung ARM9 S3C2416 microprocessor which is optimized for embedded and mobile applications, featuring a 16/32-bit ARM926EJ-S core, on-chip peripherals that include a 2D graphics accelerator and low voltage supported by Samsung’s 65nm low-power technology.
The fully integrated POS includes a host of built-in features such as touchscreen and thermal printer, also GPRS/CDMA, GPS and WIFI module are available according to the customer demands.
The POS is available for either Linux or Windows operating system.
| Specifications | |
|---|---|
| SoC | Samsung ARM926EJS S3C2416 400MHz with separate 16KB instruction and 16KB data caches, 2D Accelerator |
| SDRAM | 128MB DDR2 SDRAM, 133MHz, 32bit |
| NAND Flash | 256MB or 1GB SLC NAND Flash |
| Serial Port | 3 serial ports, one for GPS, one for GPRS/CDMA, one for Debug |
| CDMA or GSM/GPRS | Support standard AT command Set |
| LCD | 4.3 inch LCD, resolution 480*272 |
| Key | 5 keys, one for power control |
| Audio codec | WM8976 Audio chip |
| ADC | Adjustable resistor is connected with pins of ADC to check analog/digital change |
| RTC | Real Time Clock, powered by external lithium battery |
| Printer | printing on 2-inch widepaper (58mm) print at 80 mm/s (640 dotlines/s), 8 dots/mm of resolution |
| Micro SD card | Support 1G, 2G, 3G card |
| power | 7.8V battery, supporting charge online |
| others | Vibrators, Speaker, microphone, headphone |
| Dimensions | 190 x 84 x 42 mm(Length*Width*Thickness) |
| OS | Feature | Description |
|---|---|---|
| Linux2.6.21 | Bootloader | Version: u-boot1.3.4 |
| Support Nand Flash erase/write/read set, save Environment Variables bootm, bootargs setting | ||
| Kernel | Version: linux2.6.21 | |
| Drivers | Serial ports, RTC, LCD,Touch Screen, SD card, Audio, Nand Flash, Printer, Keys, Vibrators, ADC | |
| File system | Yaffs File System, busybox, Provided Lib (ALSA -lib, tslib, glibc), udev support | |
| Embedded GUI | Qtopia2.2, Qt4.6 | |
| Network protocol | TCP/IP, PPP, Telnet, FTP, Web server | |
| Cross compiler Environment |
cross-4.2.2-eabi | |
| others | Support Sleep mode, battery voltage monitor, startup logo |
| OS | Item | Feature | Description |
|---|---|---|---|
| WinCE6.0 | Bootloader | stepldr | Copy Eboot to SDRAM to jump to Eboot |
| Eboot | Support downloading images through USB device port. | ||
| Driver | Serial device | Three serial ports | |
| Printer | Thermal printer, provide the printer test program | ||
| USB Host | USB Host driver, supporting USB ActiveSync | ||
| USB Device | USB Device driver | ||
| RTC | Real time keeping | ||
| Buttons | User buttons | ||
| LCD | Coming with driver for 3.5", 4.3", 7" and 10.4" TFT LCD (resolution 800*600) | ||
| USB WIFI | RT3070, RTL8188CUS, RTL8188EUS | ||
| GPRS | Support GPRS surf Internet, call and answer the phone | ||
| ADC | ADC driver | ||
| Touch Screen | Touch Screen driver | ||
| Audio | WM8976 | ||
| SD/MMC card | Block devices drivers | ||
| Others | Support MediaPlayer, IE browser, saving Register change, MFC, NET2.0, NET3.5 and so on. |
