* Processor: Allwinner T153. Quad-Core ARM Cortex-A7 + RISC-V E907
* RAM: 512MB/1GB DDR3/DDR3L
* Storage: 8GB/16GB/32GB/64GB
* Interfaces: UART, Debug, USB OTG, 4x USB Host, MIPI DSI, 3x Ethernet, Audio I/O, 2x RS485, MicroSD, ADC, PWM, SPI, RTC, GPIO, etc.
* Operating System: Buildroot
* Dimensions: 135 x 95 mm
* Operating Temperature: 0° to +70° C
* Expansion Module: 10.1-inch LCD

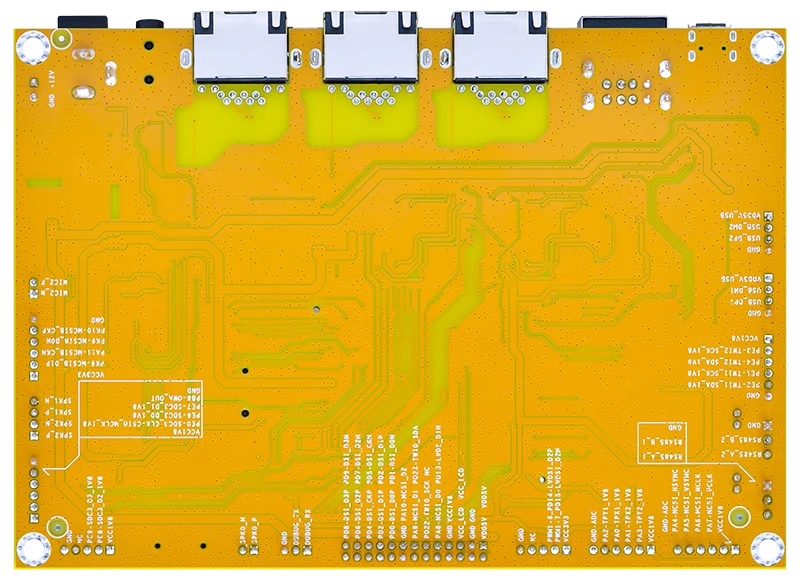

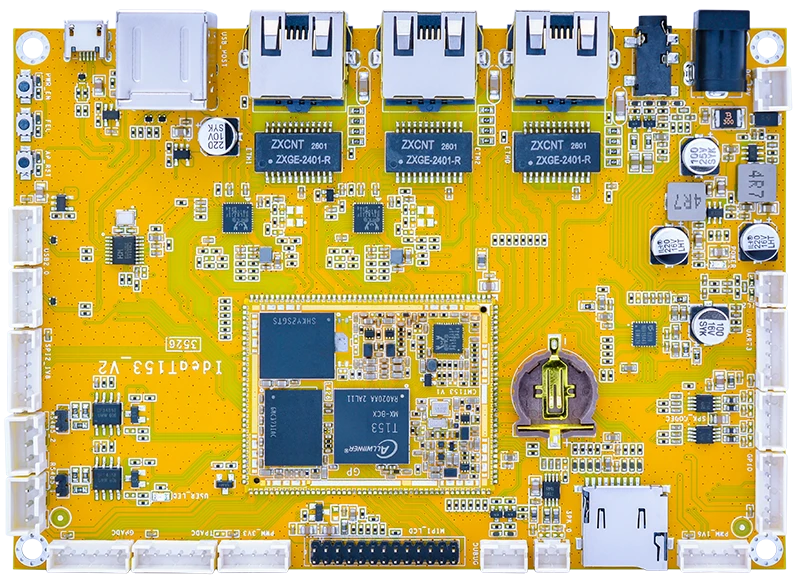

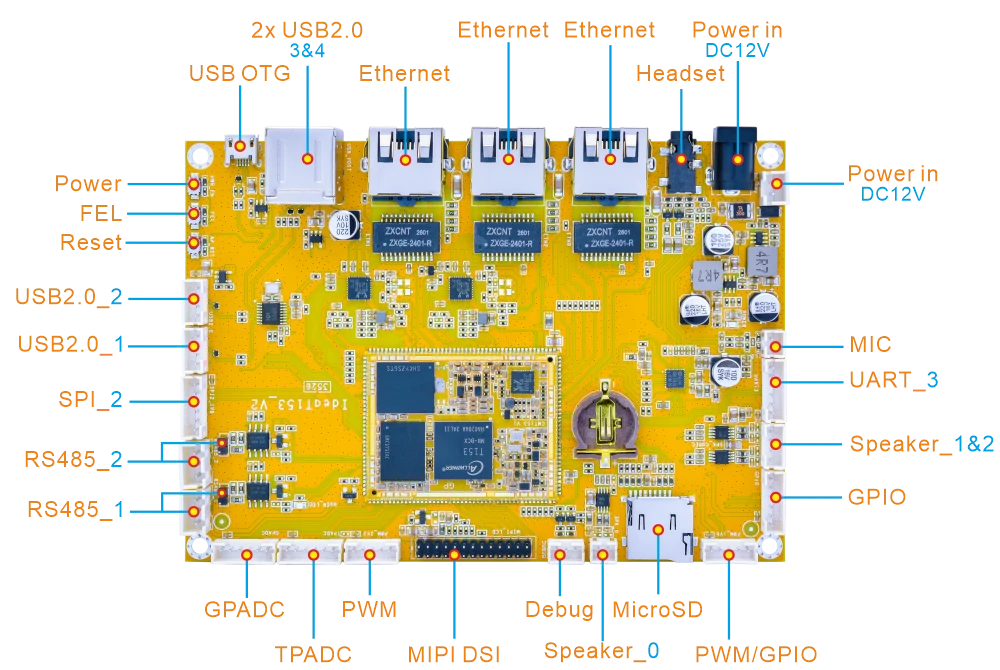

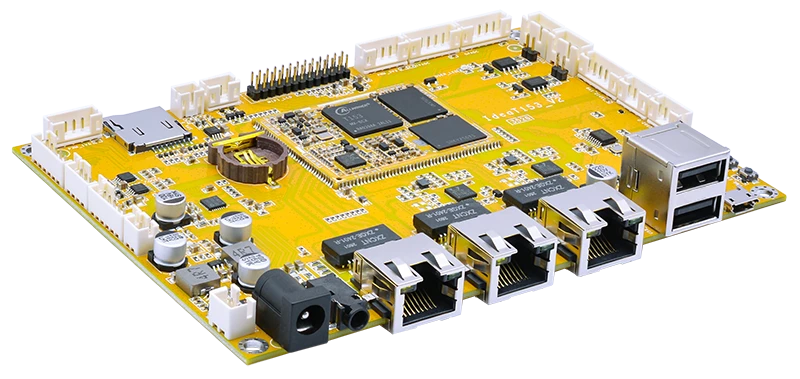

The IdeaT153 development board is powered by the Allwinner T153 SoC, combining a quad-core ARM Cortex-A7 for Linux-based applications with a RISC-V E907 core for real-time control. Its triple Gigabit Ethernet ports support multi-network gateway and edge-routing designs, while dual RS485 interfaces simplify industrial control and sensor networking. MIPI DSI and integrated audio enable HMI and interactive terminal development, and USB OTG/Host, ADC, PWM, and GPIO provide flexible peripheral and data-acquisition expansion. The board is well suited for industrial gateways, HMI, and data-acquisition systems.
| Specifications | |
|---|---|
| SoC | Allwinner T153. - Quad-Core ARM Cortex-A7, up to 1.6GHz - RISC-V E907, up to 600MHz |
| Memory | 512MB/1GB DDR3/DDR3L |
| Storage | - 8GB/16GB/32GB/64GB eMMC - MicroSD card slot |
| Power Supply | 12V/3A DC input jack or 2-pin connector |
| USB | - 4x USB2.0 Host (1x dual-USB-AF, 2x 4-pin connectors) - 1x USB2.0 OTG (Micro USB) |
| Connectivity | 3x Gigabit Ethernet RJ45 ports via Realtek RTL8211F-CG controller |
| Serial Port | - Debug, 3-pin connector - UART, 6-pin connector - 2x RS485, 3-pin connectors or 2-pin headers |
| Display | MIPI DSI, 26-pin header |
| Audio | - 1x 3.5mm audio I/O jack - 1x MIC, 2-pin connector - 2x Speakers (1x 4-pin connector for 2-channel, 1x 2-pin connector) |
| Keys | Power, FEL, Reset |
| Other features | - RTC with battery connector - GPIO, 1x 6-pin connector, 1x 5-pin connector - GPADC/TPADC, 2x 6-pin connectors - SPI, 6-pin connector - PWM, 5-pin connector |
| Operating Temperature | 0° to + 70° C |
| Dimension | Base board - 135 x 95 mm; CPU module - 33.5 x 43.0 mm |

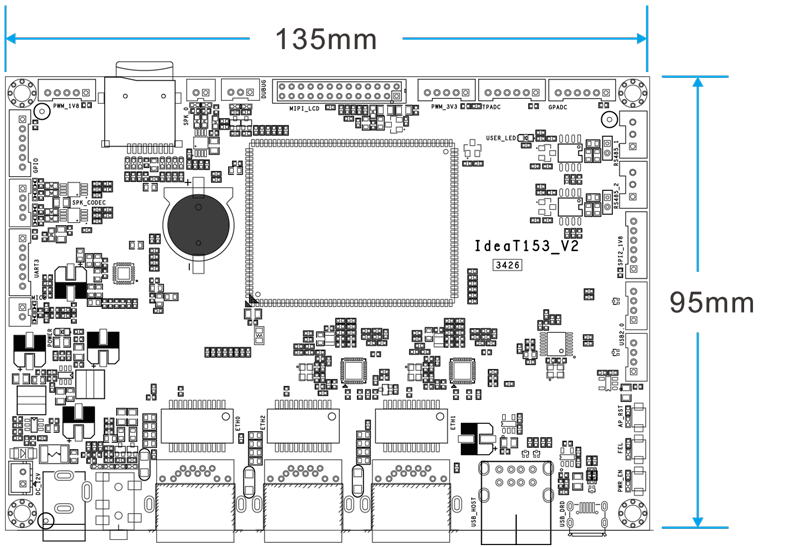

PCB Dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Buildroot | Bootloader | U-Boot 2023.04 | u-boot-sun8iw22p1.bin |
| Boot mode | Boot from eMMC | ||
| Download | Download via USB OTG | ||
| Kernel | Version | Linux 5.10.198 | |
| Drivers | eMMC | eMMC 5.1 | |
| Display | MIPI DSI. Resolution: 800 x 1280 | ||
| Audio | Headset input/output, Speaker, MIC | ||
| SD card | Micro SD card | ||
| USB OTG | 1x USB2.0 OTG, for download/ADB | ||
| USB Host | 4x USB2.0 Host | ||
| Ethernet | 3x Ethernet, 10/100/1000 Mbps | ||
| Serial Port | 1x Debug, 1x UART | ||
| RS485 | 2x RS485 | ||
| SPI | Support | ||
| ADC | Support | ||
| PWM | Support | ||
| RTC | Support | ||
| GPIO | Support | ||
| Cross-compiler Environment | Ubuntu 22.04 | ||
| Debug Tools | SecureCRT, PhoenixSuit.exe, ADB | ||
| Datasheet |
| Reference Manual |
| Expansion Module | Module Detail | Android | Linux |
|---|---|---|---|
 10.1-inch MIPI LCD |
10.1-inch Capacitive Touch Screen, 800 x 1280 | √ | √ |
