* Processor: Rockchip RV1126B. Quad-core Cortex-A53 @ 1.6GHz
* NPU: 3 TOPS
* RAM: 2GB/4GB
* Storage: 8GB/16GB/32GB/64GB/128GB/256GB
* Interfaces: UART, Debug, USB3.0 DRD, 4x USB2.0 Host, MIPI DSI, 2x MIPI CSI, Ethernet, 2x CAN, 2x RS485, Micro SD, Audio I/O, SPI, I2S, ADC, IR, GPIO, etc.
* Operating System: Debian 12, Buildroot
* Dimensions: 120 x 95 mm
* Operating Temperature: 0° to + 70° C
* Expansion Module: WiFi, Camera, 10.1" LCD

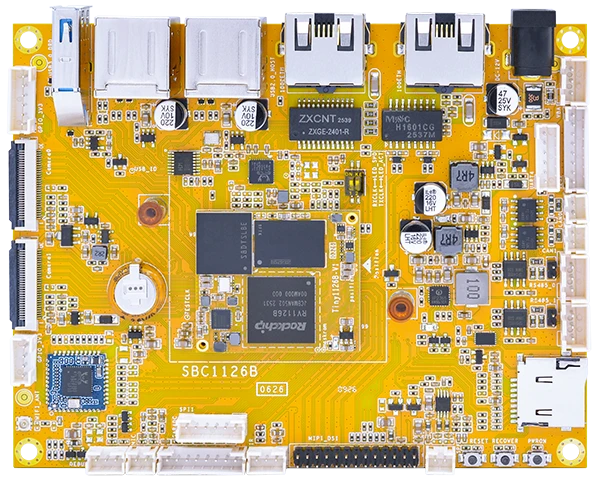

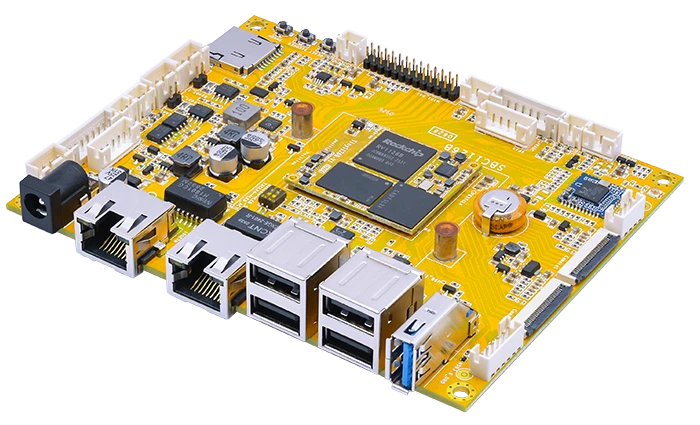

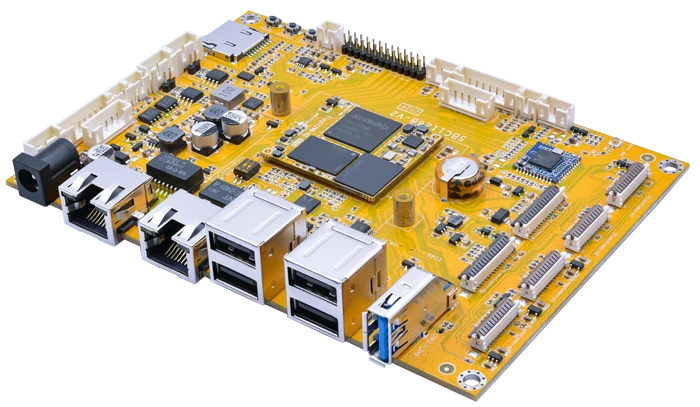

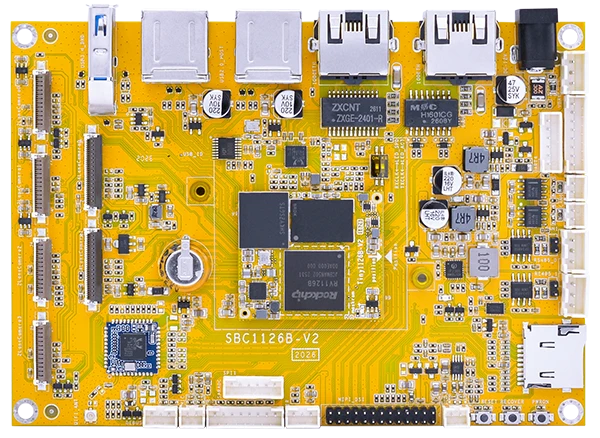

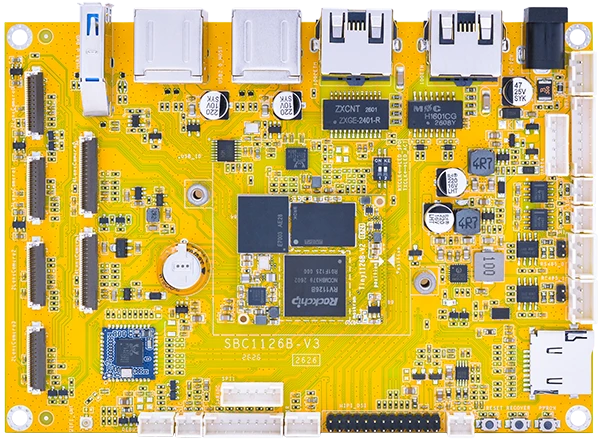

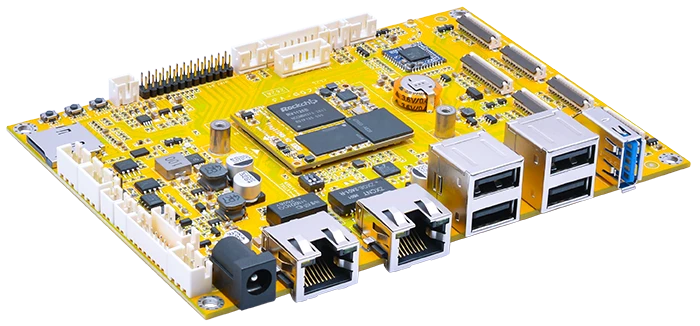

The SBC1126B is a compact single board computer powered by Rockchip RV1126B. It features a 1.6GHz quad-core Cortex-A53 CPU, a 3 TOPS NPU for AI acceleration, advanced ISP/AI-ISP for image processing, and dual MIPI CSI inputs. With H.265/H.264 multi-stream encoding, rich industrial interfaces (USB3.0, CAN, RS485), and support for Debian / Buildroot, it’s ideal for edge AI cameras, intelligent surveillance, robotics, and embedded vision systems.

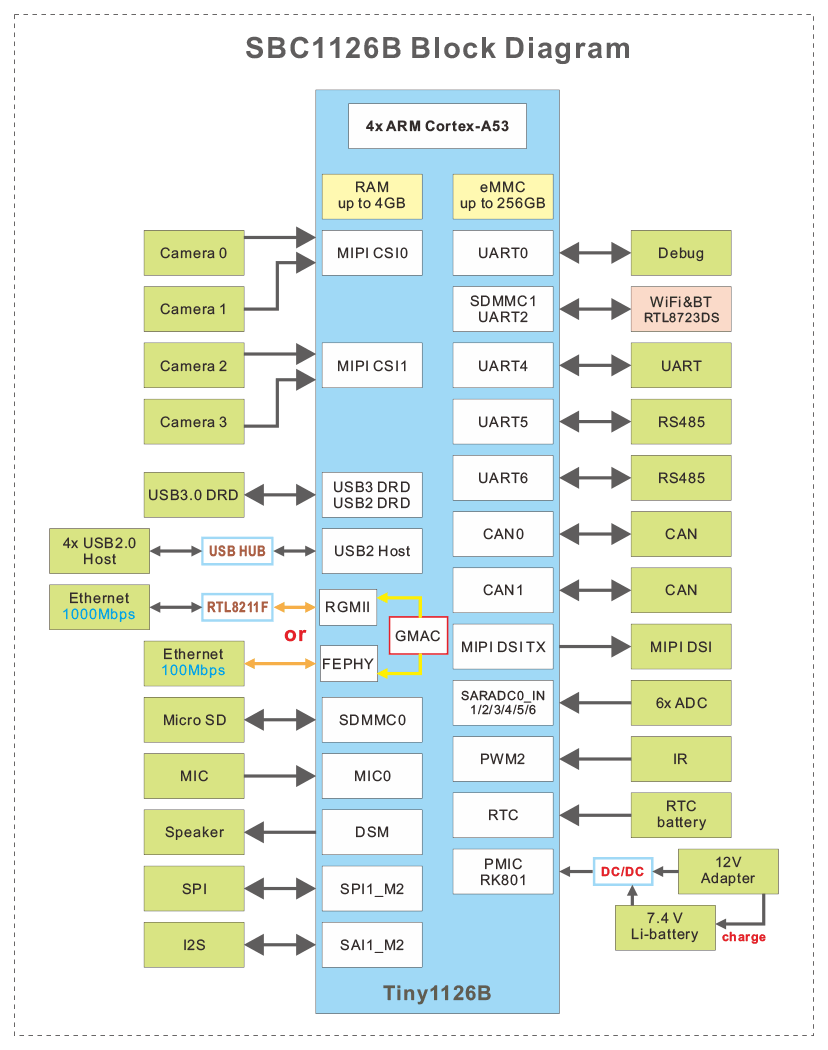

| Specifications | |
|---|---|
| SoC | Rockchip RV1126B Quad-core Cortex-A53 @ 1.6GHz |
| NPU | 3 TOPS for INT8. Support INT4, INT8, INT16, FP16 |
| Memory | 2GB/4GB LPDDR4 |
| Storage | - 8GB/16GB/32GB/64GB/128GB/256GB eMMC - MicroSD card slot |
| Power Supply | - 12V/3A DC input jack - 7.4V Li-battery, 3-pin connector |
| USB | - 1x USB3.0 DRD (Dual-Role Device) - 4x USB2.0 Host, dual-USB-AF |
| Connectivity | - 1x 10/100M Ethernet RJ45 port - 2.4G WiFi(802.11b/g/n) with Bluetooth 4.2 |
| Serial Port | - 1x Debug, 3-pin connector - 1x UART (4), 6-pin connector - 2x RS485, 3-pin connector |
| Display | 1x MIPI DSI, 1920x1080@60fps, 26-pin header |
| Camera | 2x 4-lane MIPI CSI, 30-pin FPC connector |
| Audio | - 1x MIC, 2-pin connector - 1x Speaker, 2-pin connector |
| Keys | Reset, Recovery, Power on |
| Other features | - Supercap-powered RTC - 2x CAN, 2-pin connector - 6x GPIO, 4-/6-pin connector - 6x ADC, 8-pin connector - 1x SPI(SPI1_M2), 6-pin connector - IR, 3-pin connector - 1x I2S(I2S1_M2), 8-pin connector |
| Operating Temperature | 0° to + 70° C |
| Dimension | Base board - 120 x 95 mm; CPU module - 34 x 30 mm |
| OS | Item | Feature | Description |
|---|---|---|---|
| Debian 12 Buildroot |
Boot | U-Boot 2017.09 | rv1126b_ddr_1332MHz_v1.09.bin |
| Kernel | Version | Linux 6.1.141 | |
| Drivers | eMMC | eMMC 4.51 | |
| Serial port | 1x Debug serial, 1x UART | ||
| RTC | Support | ||
| Ethernet | 10/100Mbps Ethernet | ||
| RS485 | Support | ||
| CAN | Support | ||
| RTC | Support | ||
| SPI | Support | ||
| WiFi & Bluetooth | Wireless - 2.4GHz, 802.11b/g/n Bluetooth4.2 |
||
| USB Host | 4x USB2.0 Host | ||
| USB OTG & USB3.0 | OTG function must be switched manually | ||
| LCD | MIPI LCD, 1280 x 800 | ||
| IR | Support | ||
| Audio I/O | RV1126B Built-in Codec. MIC IN and Speaker. | ||
| SD | Micro SD | ||
| GPIO | Support | ||
| ADC | 6x ADC in | ||
| Camera | 2x MIPI Camera | ||
| Battery Fuel Gauge | CW2217 | ||
| Cross-compiler Environment | Ubuntu 22.04 | ||
| Debug tools | SecureCRT, RKDevTool.exe | ||
| Datasheet |
|
|
| Tools |
| Expansion Module | Module Detail | Debian | Buildroot |
|---|---|---|---|
 WiFi&Bluetooth |
BL-M8723DS1 module. 2.4G WiFi + Bluetooth 4.2 | √ | √ |

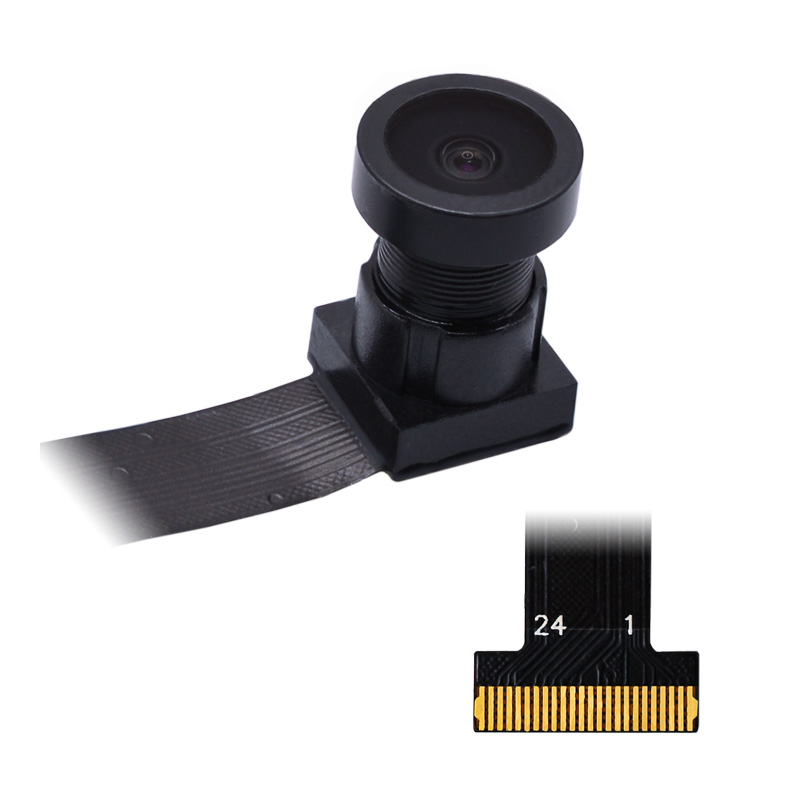

 Camera |
SONY IMX415-AAQR-C module | √ | √ |
| 10.1" MIPI LCD |
10.1-inch Capacitive Touch Screen, 1280 x 800 | √ | √ |
