* Processor: Samsung ARM Cortex-A8 S5PV210AH, 1GHz
* RAM: 512MB
* Storage: 512MB

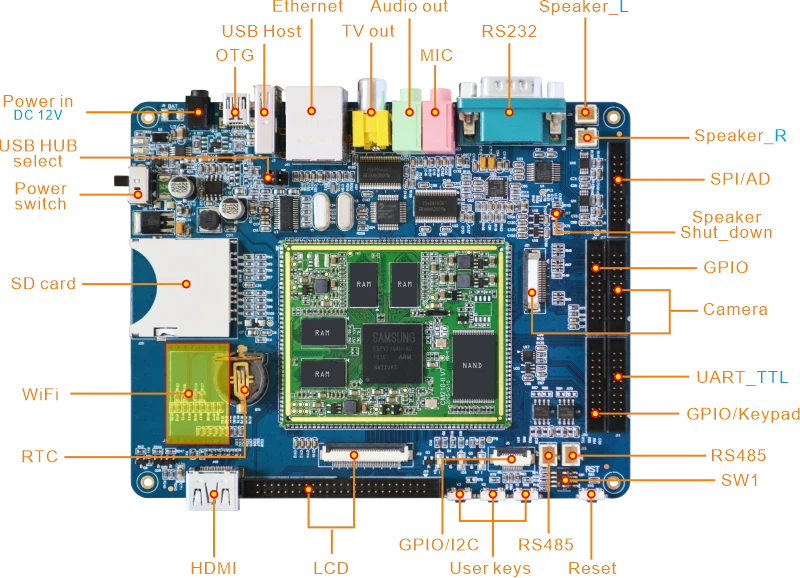

* Interface: USB Host, USB OTG, 4x UARTs, RS485, HDMI, GPIO, LCD, Ethernet, Camera, WiFi, SD, Keyboard, Audio I/O, TV_OUT, I2C
* Operating system: Android 4.0
* Dimensions: 145 x 115 mm
* Expansion Module: 3G model, GPS, WiFi, Bluetooth, Camera
Android210 is a Single Board Computer (SBC) based on a Samsung S5PV210AH-A0 at 1GHz ARM Cortex-A8 CPU. An internal 64-bit bus provides a standard set of high-end on-board peripherals. The Android210 features 512MB DDR2 and 512MB high-speed NAND flash. It is an ideal solution for applications requiring cost-effective, low power and high performance.
To reduce total system cost and enhance overall functionality, Android210 allows development of multi-function embedded applications through its multiple peripheral interfaces, which include 10/100 Ethernet port, USB Host2.0, USB OTG2.0, serial ports, SD card socket, general I/O lines, RTC, audio codec and speaker, touchscreen, and TFT 24-bit true color LCD interface.
Android210 runs Android4.0 which uses an improved Linux 3.0 kernel (currently 3.0.8 version) that allows bootup from NAND flash and provides driver support for all on-board hardware in a short time.
Equipped with the high-end processor, rich peripheral interface and open-source code, Android210 is ideal for embedded applications such as MID, Netbook, Learning machine, AD player, IPC, PDA, GPS, Vehicle equipment, Visual telephone, MMT, HMI, Monitoring equipment, and Teaching laboratory equipment.
Specifications | |
---|---|
SoC | Samsung S5PV210AH-A0, ARM Cortex-A8, up to 1GHz |
Memory | 512MB DDR2 |
Storage | 512MB NAND Flash Standard SD card slot |
Power Input | 12V@2A DC jack; Lithium battery |
USB | USB OTG 2.0, mini USB USB Host 2.0, USB-AF |
Connectivity | 10/100 Mbps Ethernet RJ45 port via Davicom DM9000 controller Optional USB/SDIO WiFi IEEE 802.11b/g/n Optional USB Bluetooth Optional USB 3G Modem |
Display | TV out, RCA connector 4.3", 7", 10.1" TTL LCD (resistive/capacitive touchscreen) HDMI v1.3, 1080p@30fps |
Audio | 2x 3.5mm audio I/O jack 2-channel Speaker(R/L), 2-pin connector |
Serial port | 1x RS232 (UART0), DB9 2x RS485 (UART2, UART3), 2-pin connector 1x TTL UART (UART1), 20-pin expansion connector UART0/2/3 can also be used as TTL on 20-pin connector |
SPI/AD | 1x SPI and 2x ADC, 20-pin header |
Camera(optional) | 1x Camera, 24-pin FPC connector or 20-pin header |
GPIO/Keypad | 16x GPIO, 20-pin header 16x GPIO/ 8*8 matrix Keypad, 20-pin header |
Keys | Reset, 3x User Keys, power switch, boot mode select (SW1) |
RTC | RTC with battery connector |
Dimensions | Based board - 145 x 115 mm; CPU board - 65.5 x 53.0 mm |
Block Diagram
PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android4.0 | Bootloader | Uboot-1.3.4 | Main functions: 1. NAND Flash erase/write/read 2. USB download Image 3. print, set, save Environment Variables 4. memory's contents display/compare/modify 5. bootm, bootargs setting |
V210_USB.BL2.bin | Uboot boot process, download uboot by the process | ||
Image update | Support updating image from SD card or USB | ||
Kernel and drivers | Kernel version | Linux 3.0.8 | |
Drivers (source code) | RTC, 4.3"/ 7"/ 10.1" LCD including Touch Screen, USB Device, Audio, Keypad, DMA, 2D, IIC, SPI, MFC, TVOUT, HDMI, SD/MMC/SDIO, JPEG, ROTATOR | ||
File System | File System | Yaffs File System | |
Embedded GUI | Android4.0 | Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager | |
Network protocol & application |
Network Protocol | TCP/IP protocol, Telnet, FTP Client/server, boa web server | |
Application | Alarm Clock, Browser, Gallery, Calculator, Camera, Phons, Email, ES File Explorer, ES Task Manager, Messaging, Music, Gallery | ||
Cross compiler Environment | Arm-2009q3.tar.bz2 | ||
Debug Tools | DNW, MoviNAND_Fusing_Tool.exe, VmWare7.0 |
Samsung ARM Cortex-A8 S5PV210 Datasheet (28.8MB)
Expansion Module | Module Detail | Android |
---|---|---|
WiFi Module | USB WiFi Module, supports IEEE 802.11b/g/n, 802.3, 802.3u | √ |
CMOS Camera | 2 Megapixel, Himax HM2055 Chipset | √ |
GPS Module | VPN1513S, WGS-84 | √ |
3G Module | Huawei E1750 WCDMA module | √ |
Bluetooth Module | USB Bluetooth | √ |
If you order the Development Kit or any question, please feel free to contact us at market@armdesigner.com
