CMT113

* Processor: Allwinner T113-S3/S4. Dual-core ARM Cortex-A7, 1.2GHz
* DSP: Single-core HiFi4
* Memory: 128MB/256MB
* Storage: 8GB/16GB/32GB
* Pin out: 3x UART, 2x USB2.0, 2x SD, RGB/LVDS, LVDS/MIPI DSI, Parallel CSI, TV OUT, 2x TV IN, Audio I/O, ADC, I2S, PWM, GPIO, etc.
* Operating system: Buildroot
* Dimensions: 36 x 30 mm
* Package: 122-pin, 1.0mm pitch QFN

     CMT113_development_board

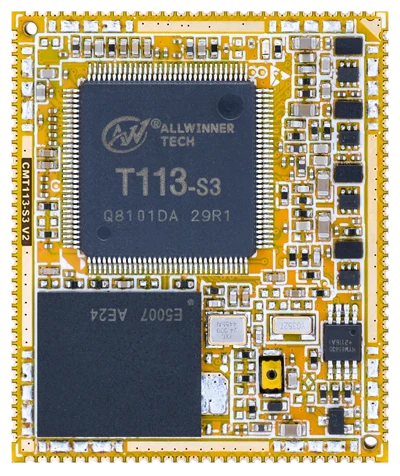

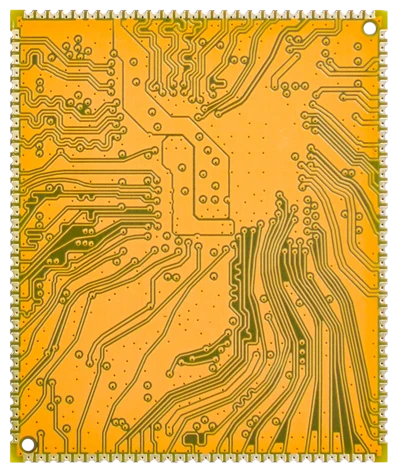

Allwinner_T113-S3_system-on-moduleCMT113_rear

Boardcon CMT113 is a dual-core system-on-module powered by Allwinner T113-S3/S4 processor with built-in 128MB DDR3 memory and external 8GB eMMC storage.

ImageAllwinner T113-S3/S4 Highlights

Dual-core Cortex-A7 Processor: The T113-S3/S4 features dual-core Cortex-A7 architecture with a clock speed of up to 1.2GHz, up to 20% more single thread performance than the Cortex-A5, providing powerful computing capabilities for various complex applications.

Robust Video Engine: T113-S3/S4 supports H.265/H.264 1080P@60FPS video decoding and JPEG/MJPEG 1080P@60FPS video encoding, meeting the requirements of high-definition video processing.

Connectivity and interfaces: T113-S3/S4 supports multiple display and camera interfaces, connectivity connections include MIPI-DSI/RGB/LVDS/Parallel CSI, as well as Gigabit Ethernet, USB 2.0, UART.

ImageCMT113 Features

High-density Design: The CMT113 SOM features a 4-layer high-density PCB design, integrating the T113-S3/S4 processor, eMMC/Nor Flash, discrete power supply, and other circuits, ensuring the stability and reliability of the circuit board.

Compact Size: The core board measures 30mm×36mm, making it easy to integrate into various devices while reducing space occupation.

Abundant Peripheral: CMT113 SOM introduces a total of 122Pin signals and power/GND through stamp holes. These signals include GPIO, UART, USB, SPI, facilitating users to expand and connect peripheral devices.

Stable and Reliable: The CMT113 has pass the High&low temperature and Continuous operation tests to ensure stable operation in complex environments.

ImageCMT113 SOM Applications

With the high degree of functional integration, stable performance and optimized cost, the CMT113 can provide users with efficient, stable, and reliable solutions include:

IoT Gateway: The CMT113 SOM can serve as the core module of an IoT gateway through Gigabit Ethernet interfaces and various wireless communication methods, enabling centralized device management and control.

Commercial Display: CMT113 supports high-definition video decoding and multiple display interfaces, suitable for commercial display devices such as advertising machines and information release screens with high-quality visual experience.

Energy and Power: through RS485 and UART, the T113-S3/S4 SOM can connect various sensors and controllers and realize real-time monitoring and management of energy data, providing data support for energy management and energy conservation.

Industrial Control: The CMT113 SOM can serve as the core module of industrial control equipment, connecting various sensors and actuators to achieve automated control and adjustment of equipment.
