* Processor: Microchip AT91SAM9X35 @ 400MHz, or Samsung ARM9 S3C2416X @ 400MHz, or NXP i.MX287 ARM926EJ-S CPU @ 454MHz
* RAM: 64MB/128MB
* Storage: 256MB/512MB/1GB

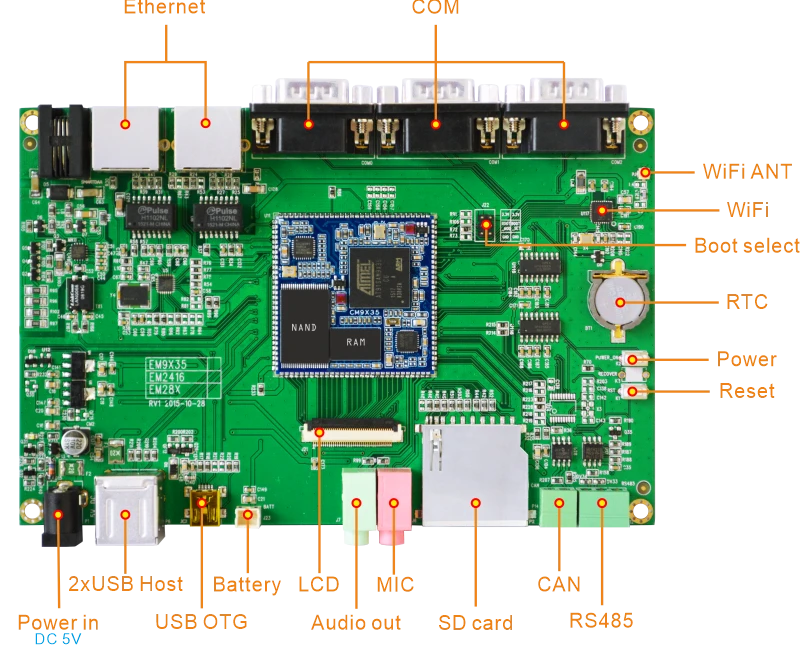

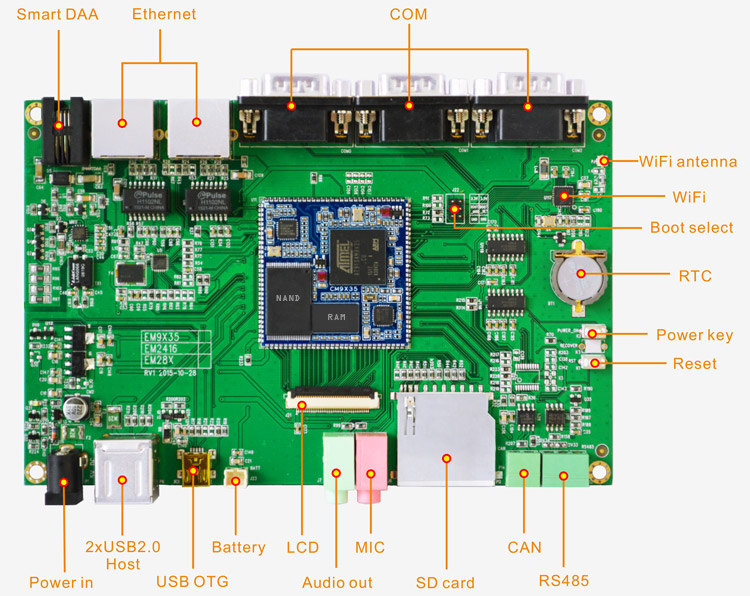

* Interfaces: LCD&Touchscreen, 2x Ethernet, RS485, CAN, 3x UART(DB9), USB OTG, 2x USB HOST, Audio I/O, SD card, SmartDAA(RJ22)
* Operating system: Linux 2.6.39
* Dimensions: 160 x 105 mm
EM2000 is an ARM9 SBC targets to control panel/HMI, fitness equipment, smart grid infrastructure, communications gateways, and imaging terminals among others.
The embedded board supports three versions of CPU Module which separately based on ATMEL/Microchip AT91SAM9X35, Samsung S3C2416 or Freescale/NXP i.MX287 processor and includes 64MB / 128MB DDR2 RAM, 256MB SLC NAND storage, 2x USB 2.0 host ports, SmartDAA port, and a pair of 10/100M Ethernet and more.
The SBC has a flexible design with one CPU module CM9X35 (Compatible module - MINI2416, MINI287) mounted on one base board which is easy for customers to design their own base board or upgrade the CPU module.
The board runs Linux2.6.39 and is delivered with software packages, and the company also provides some sample applications to the customers.
Boardcon is a confirmed third party partner of Atmel&Freescale, welcome to use Boardcon's Atmel/Freescale products!
| Specifications | ||
|---|---|---|
| SoC | CM9X35 | Atmel/Microchip AT91SAM9X35 ARM9 Processor @ 400MHz |
| MINI2416 | Samsung ARM9 S3C2416X @ 400MHz | |
| MINI287 | Freescale/NXP i.MX287 ARM926EJ-S CPU @ 454MHz | |
| Memory | CM9X35 | 128MB DDR2 SDRAM |
| MINI2416 | 64MB DDR2 SDRAM | |
| MINI287 | 128MB DDR2 SDRAM | |
| Storage | CM9X35 | 256MB |
| MINI2416 | 256MB/512MB/1GB optional | |
| MINI287 | 256MB | |
| Power | DC 5V/2A | |
| USB | CM9X35 | 2x USB2.0 Host, 1x USB2.0 OTG |
| MINI2416 | 1x USB2.0/1,1 Host, 1x USB2.0 OTG | |
| MINI287 | ||
| LCD | 1x 40-pin FPC connector, integrated 4-wire resistor touchscreen. Support 4.3", 7", 10.1" TFT LCD | |
| Ethernet | CM9X35 | 1x 10/100 Mbps Ethernet RJ45 port via KSZ8081RNBCA controller |
| MINI2416 | 1x 10/100 Mbps Ethernet RJ45 port via LAN9220 controller | |
| MINI287 | 2x 10/100 Mbps Ethernet RJ45 port via LAN8720A controller | |
| Serial Ports | 3x 3-wire UART (COM0/1/2), DB9 interface | |
| Audio | 2x Audio I/O (Headphone, MIC), 3.5mm Jack. WM8731L/WM8731S audio codec | |
| SmartDAA | Just for MINI9X35. RJ22 interface | |
| CAN | CM9X35 | 1x CAN |
| MINI2416 | 1x SPI conversion CAN | |
| MINI287 | 2x CAN | |
| RS485 | 1x RS485 port | |
| SD card | 1x SD card slot | |
| RTC | Real Time Clock, powered by external lithium battery | |
| Button | 1x Reset, 1x power_on | |
| Boot select | 2x 3-pin header, for boot mode settings | |
| WiFi (Optional) | 802.11 b/g/n | |
| Dimensions | 160 x 105 mm | |
PCB dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux2.6.39 | Bootloader | Boot | Uboot 2010 |
| Tftp | Support tftp transmitting protocol | ||
| File system | Yaffs | ||
| Kernel | Support writing kernel image into nand flash and kernel parameter setting | ||
| Etc. | Support via USB and Serial Interface to download application to flash debug | ||
| Kernel | Version | Linux kernel 2.6.39 | |
| File system | CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2 | ||
| Serial device | Three serial ports | ||
| 10/100M Ethernet | KSZ8081 | ||
| RTC | RTC driver | ||
| USB Host | USB Host, USB Slave driver | ||
| LEDs | LEDs driver | ||
| Buttons | User buttons | ||
| Language | Multi-language Support | ||
| LCD | Coming with driver for 4.3-, 7-inch TFT LCD | ||
| Touchscreen | Touchscreen driver | ||
| SD/MMC card | SD/MMC card driver | ||
| TWI | TWI driver | ||
| SPI | SPI driver | ||
| CAN | CAN driver | ||
| USB | USB driver | ||
| RS485 | RS485 driver | ||
| NANDFLASH | Support 512 Bytes small Page, 2K bytes big Page, driver is compatible with 128Mbit ~ 8Gbit capacity | ||
| Sound | WM8731 | ||
| Embedded GUI | Qt/Embedded | Angstrom | |
| Rz and sz | It is a application that transfer and receive file by serial port | ||
| Madplay | It is a MP3 player | ||
| Network protocol | TCP/IP | TCP/IP protocol | |
| Telnet | Telnet server, telnet remote login | ||
| File transfer | FTP Client/server | ||
| Web server | boa web server | ||
| USB port supported Devices | U-disk, portable hard-disk, USB mouse, USB Keyboard, USB HUB and so on. | ||
| Commands | cat, chmod, discard, echo, flashfsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod | ||
| Tools | Busybox1.2.0 and busybox1.13 (provided in the CD-ROM) | ||
