Idea3588

* Processor: Rockchip RK3588 octa-core processor, 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
* NPU: 6 TOPS
* RAM: 8GB
* Storage: 32GB
* Interfaces: 4x USB2.0 Host, 1x USB3.0 Host, 1x USB3.1 Type-C, 2x UART, RS485, CAN, Ethernet, HDMI OUT, HDMI IN, DisplayPort, MIPI CSI, MIPI DSI, PCIe2.0, PCIe3.0, SATA3.0, SD+SIM, Audio I/O, RTC, etc.
* Operating system: Android 13, Debian 12, Buildroot
* Dimensions: 165 x 120 mm

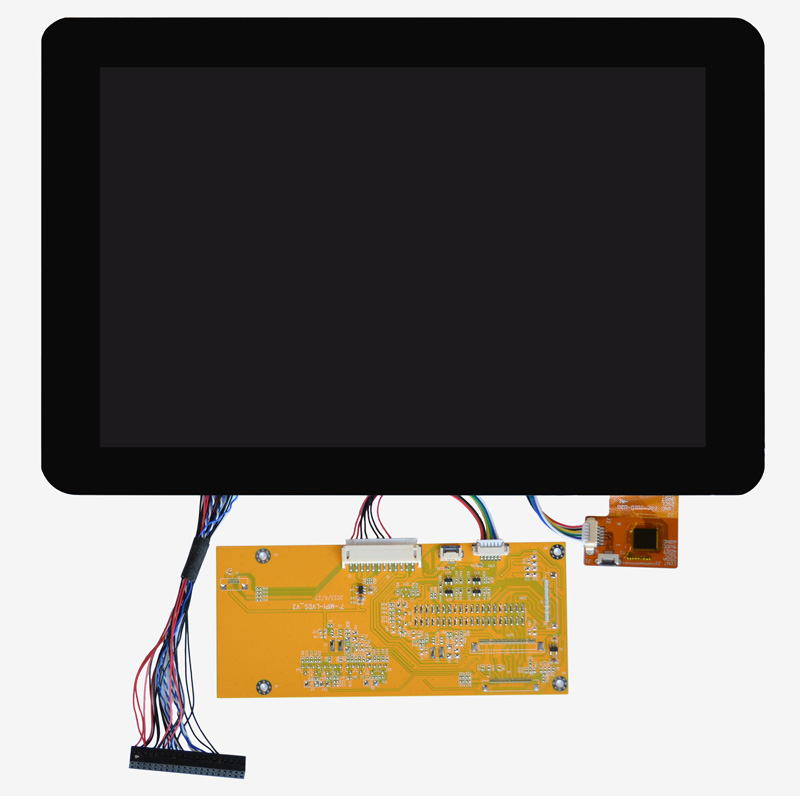

* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD
html Idea3588 Manual

     RK3588-CPU-module

Idea3588 is an octa-core single board computer powered by Rockchip RK3588 processor and designed to IPC, high-end tablet, 8K TV, AR/VR, personal mobile Internet equipment and other AIoT devices.
The RK3588 is Rockchip’s new generation flagship application processor with quad-core Cortex-A76 and quad-core Cortex-A55 alongside a NEON co-processor, quad-cluster Arm Mali 'Odin' GPU, 6 TOPS NPU accelerator, and an advanced multimedia engine supporting 8Kp30 video encoding as well as 8Kp60 video decoding. The 8nm adopted by RK3588, increase the performance of the previous generation by 20%~30%, while the power consumption can be reduced by 40%.
Idea3588 SBC is comprised of a CM3588 module with 8GB (up to 16GB) RAM and 32GB (up to 128GB) eMMC flash and carrier board, supports NVMe storage, offers DisplayPort, HDMI, and MIPI DSI/eDP video interface, MIPI CSI for 4K camera module, Gigabit Ethernet, USB 3.1 Type-C, HDMI in, WiFi, Bluetooth 5.2, as well as optional 4G cellular connectivity, and PCIe slot.

RK3588-single-board-computer

Rockchip-RK3588-SBC

rk3588-development-board
