* Processor: Ingenic T41ZL. Dual-core MIPS XBurst2 @ 1.4GHz CPU + RISC-V coprocessor @ 700MHz
* NPU: 1.2 TOPS
* RAM: Built-in 64MB DDR2/DDR2L
* Storage: 32MB Nor Flash
* Interfaces: USB2.0 OTG, Ethernet, RGB LCD, RS485, Debug, UART, mPCIe, SIM, Micro SD, MIPI CSI, Speaker, Microphone, ADC, GPIO, RTC
* Operating system: Linux
* Dimensions: 150 x 110 mm
* Expansion Module: 4G model, WiFi, Camera, 4.3-inch LCD
The future trend of the pan-visual industry is richer AI computing power, lower power consumption, lower overall costs, and long-term better quality and effective functional innovation.

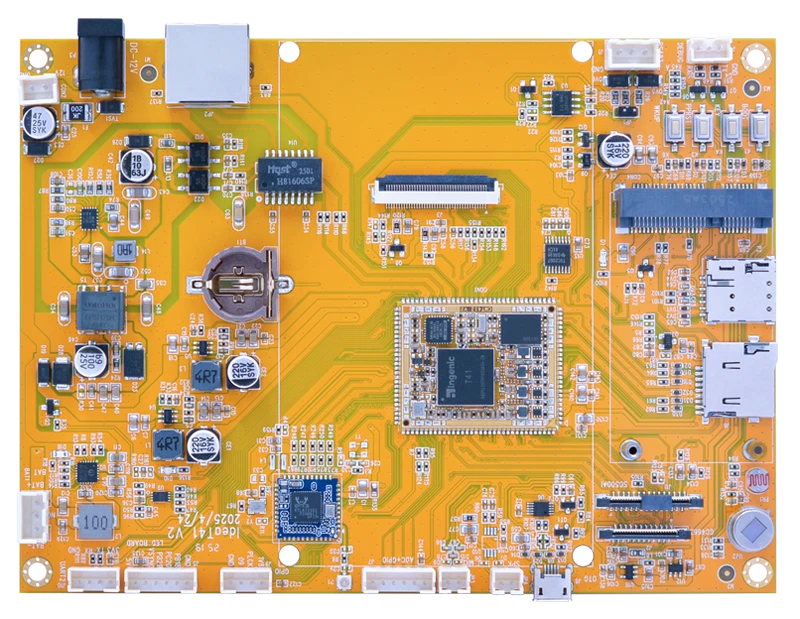

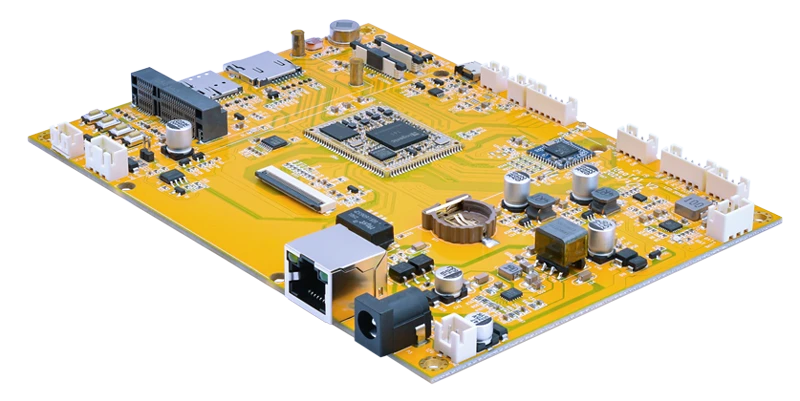

Boardcon IdeaT41 is an ultra-low power single board computer powered by Ingenic T41ZL processor for Next-generation Battery Camera. The 12nm process enables T41ZL less power while providing better performance, effectively addressing the issues of computing power density and power consumption heating. It supports 1.2T NPU, 4K resolutions ISP, and 2160P20 VPU.
The IdeaT41 SBC integrates WiFi&BT, 4G LTE modules, and supports 4K camera, enabling functions such as human detection and two-way voice intercom. The high-quality image processing capabilities and low power consumption characteristics make it suitable for scenarios with long-term monitoring needs, such as highways, breeding farms, geological disaster monitoring, and so on.
Specifications | |
---|---|
SoC | Ingenic T41ZL. Dual-core MIPS XBurst2 @ 1.4 GHz, RV32IM instruction set, 128KB L2 cache |
MPU | RISC-V coprocessor 700MHz |
NPU | 1.2 TOPS @ int8, 4.8 TOPS @ int4 |
Memory | Integrated 64MB DDR2/DDR2L |
Storage | 32MB ~ 256MB Nor Flash MicroSD card slot |
Power Supply | 12V/3A DC input jack; POE; 8.4V battery |
USB | USB2.0 OTG |
Connectivity | 10/100 Mbps Ethernet RJ45 port via Motorcomm SZ18201 controller 2.4G WiFi (802.11b/g/n) with Bluetooth 4.2 mPCIe socket with Nano SIM card port to support 4G module |
Serial | 1x Serial port for debug, 3-pin connector 1x UART, 4-pin connector 1x RS485 (Multiplexing with Bluetooth), 3-pin connector |
Display | RGB, 800x600@60Hz (40-pin FPC connector) |
Audio | Speaker, 2-pin connector MIC, 2-pin connector |
Camera(optional) | 2-Lane MIPI CSI. Camera0, 30-pin FPC connector; Camera1, 30-pin FPC connector; Camera2, 24-pin FPC connector. Camera0/1/2 multiplex signal MIPI RX. |
Keys | Wake up, Reset, Boot select, User key |
Other features | RTC with battery connector, GPIO, ADC, LED connector (PWM/GPIO) |
Dimensions | Based board – 150 x 110 mm; CPU module – 31.7 x 25.5 mm |

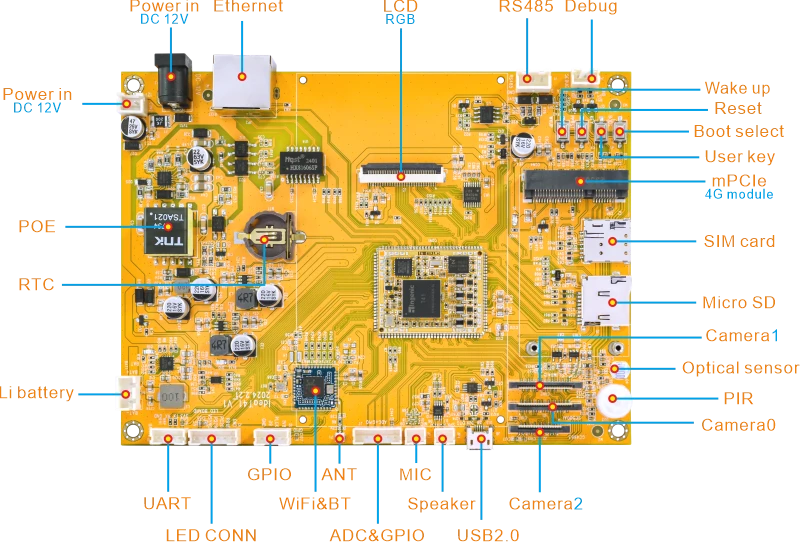

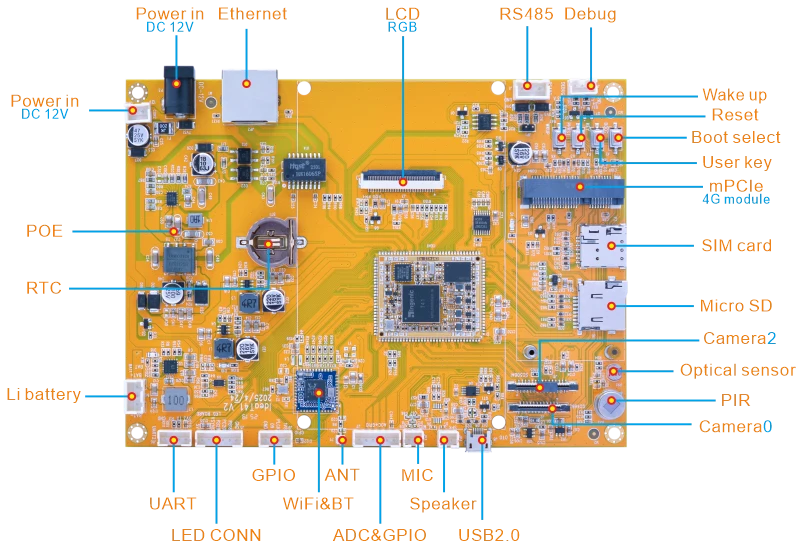

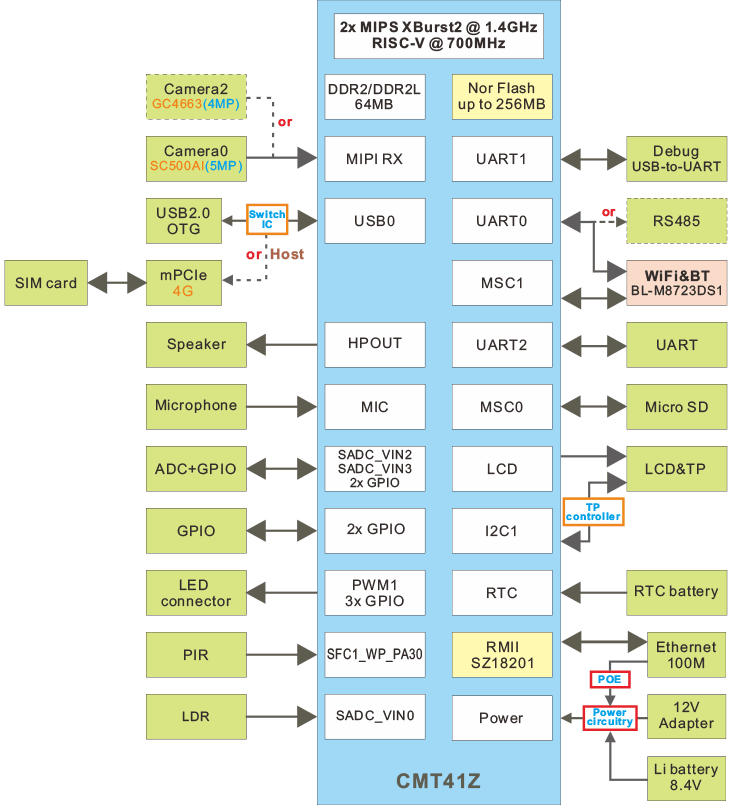

Block Diagram
PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Linux4.4 (ISVP-SDK 1.2.3) |
Boot | U-Boot SPL 2013.07 | u-boot-with-spl.bin |
Kernel | Version | Linux version 4.4.94 | |
Driver | Audio | MIC, speaker | |
SD card | Micro SD card | ||
Micro USB | For download image | ||
Ethernet | 10/100 Mbps Ethernet | ||
Camera | Sc500ai | ||
WiFi | RTL8723ds | ||
Serial Port | Debug | ||
4G&GPS | EC20 LTE | ||
LCD | 480*800, MCU LCD | ||
RTC | Built in T41 | ||
UART | UART2 | ||
IR | PWM IR | ||
PIR | Treating the PIR sensor as a key | ||
LDR | light dependent resistor | ||
Cross-compiler Environment | Ubuntu 16.04 | ||
Debug Tools | SecureCRT, USBCloner |
Datasheet |
Ingenic T41 brief (151KB) |
Tools |
Expansion Module | Module Detail | Linux |
---|---|---|
4G&GPS | Quectel EC20 Mini PCIe Multi-mode LTE Module | √ |
WiFi&Bluetooth | BL-M8723DS1 module. 2.4G WiFi + Bluetooth 4.2 | √ |
Camera | SC500AI module, 5-Megapixel; IMX415 module, 8-Megapixel |
√ |
4.3-inch LCD | 4.3-inch MCU LCD, 480*800 | √ |
