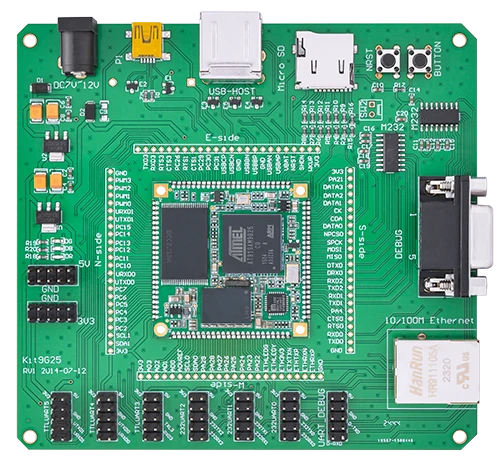

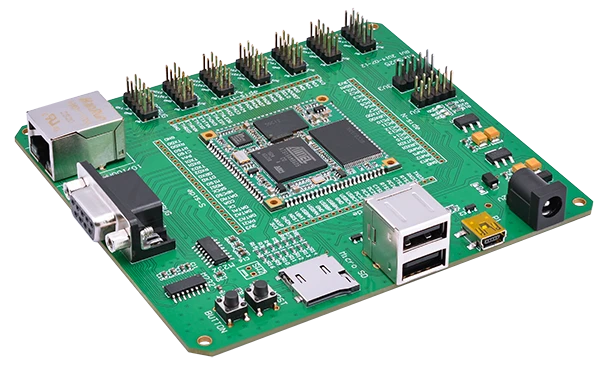

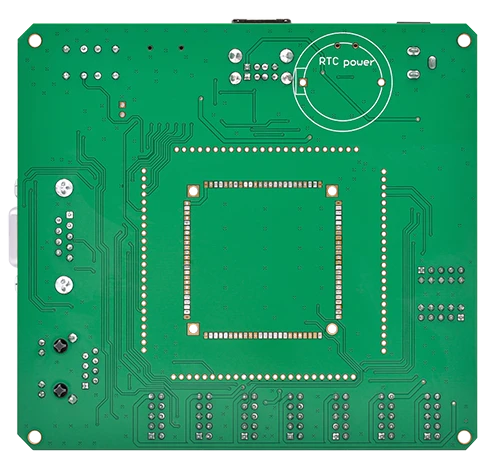

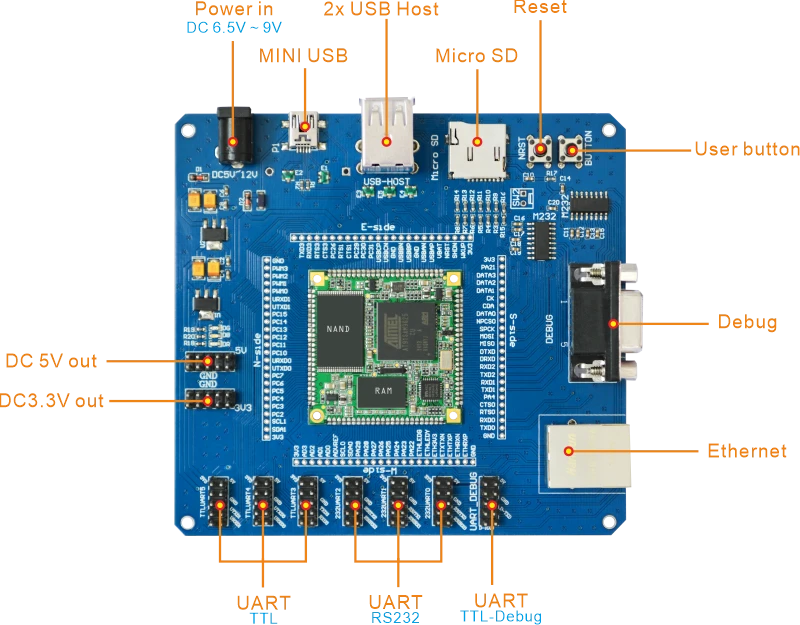

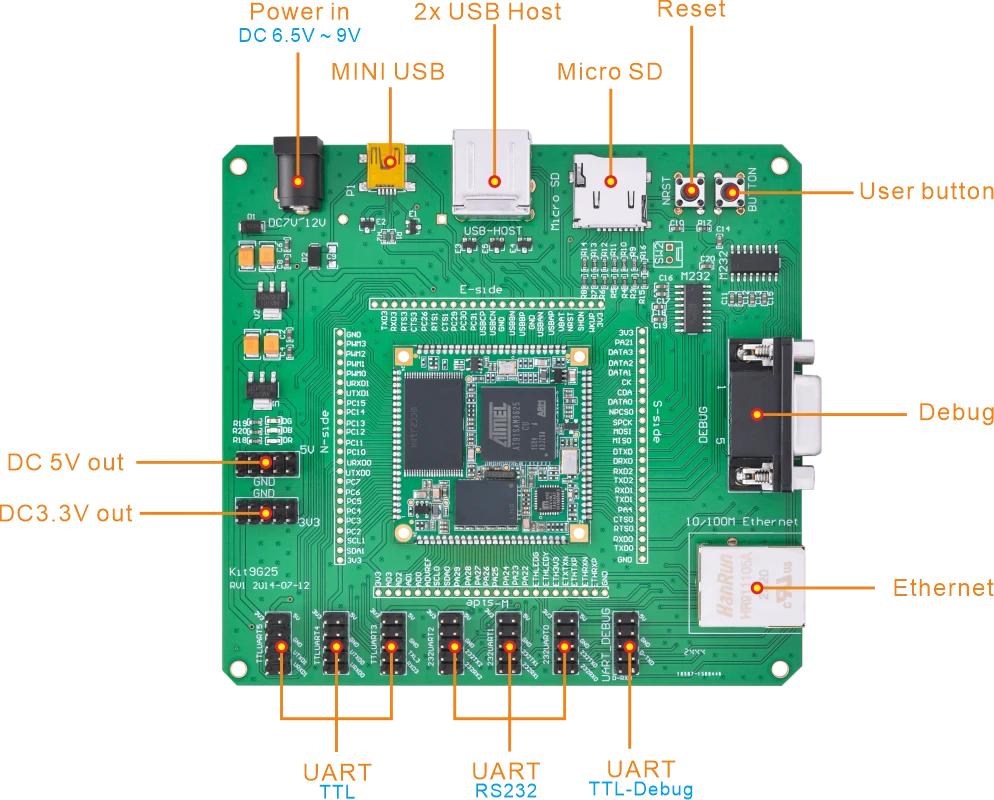

The KIT9G25 consists of the base board and processor card with an Atmel/Microchip AT91SAM9G25 processor operating at 400 MHz with 128MB Nand Flash(optional), 128MB DDR2, 4MB Data Flash, and 64KB Serial EEPROM. It supports Linux(kernel version: Linux 3.6.9). The board features connectivity peripherals, including mini USB, 2x USB host, 10/100M Ethernet interface, UART ports(RS232/TTL), and micro SD card interface.
Measuring only 118mm x 109.9mm, low power and low-cost, making KIT9G25 an optimized solution for industrial applications.
Specifications | |
---|---|
SoC | Atmel/ Microchip AT91SAM9G25 ARM9 @ 400MHz |
Memory | 128MB DDR2 |
Storage | 128MB Nand Flash Micro SD card slot |
Power in | DC 6.5V ~ 9V |
USB | 2x USB Host2.0, 1x mini USB2.0 |
UART | 3x UART(TTL), 2x 5-pin connector; 3x UART(RS232), 2x 5-pin connector;; 1x UART(TTL-Debug), 2x 5-pin connector; 1x UART(Debug), DB9 |
Ethernet | 10/100 Mbps Ethernet RJ45 port via KSZ8041NL controller |
DC output | DC 3.3&5V output, 2x 5-pin connector |
Button | Reset, user button |
Dimensions | Carrier board - 118 x 109.9 mm; CPU board - 40 x 40 mm |
Block Diagram
PCB Dimension
Software Feature
* Bootloader support (Support update the system via TF Card, USB Disk and Ethernet)
* Linux kernel version: Linux 3.6.9
* Buildroot rootfs provided (pre-install in the Nand Flash)
DHCP, SSH, Telnet, Test Demo Support
The Expand interface demo provide
Fully open source firmware, software environments and toolchains available from Atmel sites
* Debian system provided(Need boot from SD/TF card)
Thousands of Open Source applications available from the Debian repositories
Almost all programming language available
C, Python, Perl and PHP already installed on the factory default micro SD for in-board development
* All the Bootloader/Linux Kernel Source code and system images provide
Datasheet |
Microchip AT91SAM9G25 datasheet (3.45MB) |
KSZ8041NL datasheet (672KB) |
Reference Manual |
MINI9G25 Hardware Guide (1.67MB) |
MINI9G25 Pin Definition (319KB) |
Tools |
DNW.zip (23KB) |
SecureCRT (6.94MB) |
If you order the kit or any question, please feel free to contact us at market@armdesigner.com
