* Processor: Samsung ARM Cortex-A8 S5PV210AH, 1GHz
* RAM: 512MB
* Storage: 1GB
* Interfaces: 4x UART, USB2.0 Host, USB2.0 OTG, HDMI, LCD, Ethernet, Audio out, MIC, Keypad, Camera, SD, GPIO, JTAG, MIPI, SDIO WiFi, etc.
* Operating system: Android 2.3/4.0, Linux+QT, WinCE6.0
* Dimensions: 110 x 110 mm

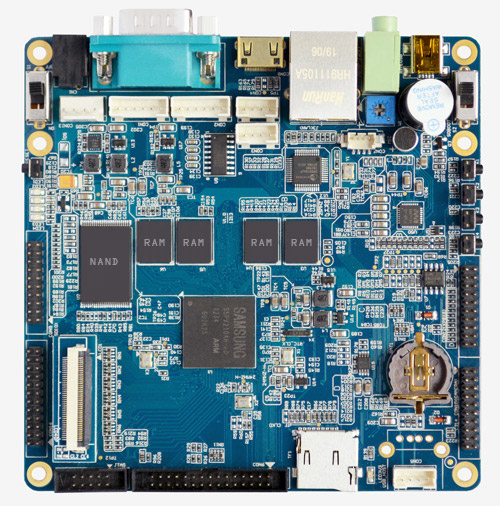

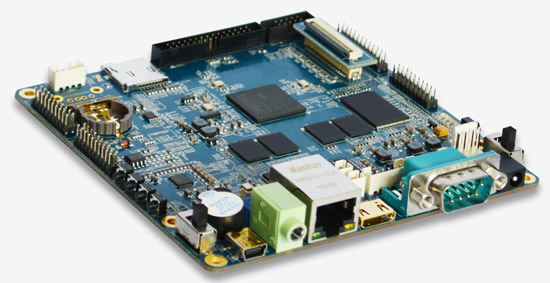

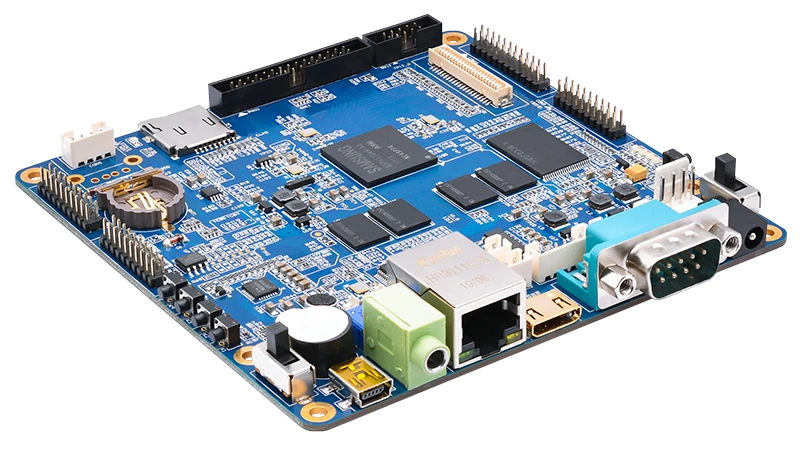

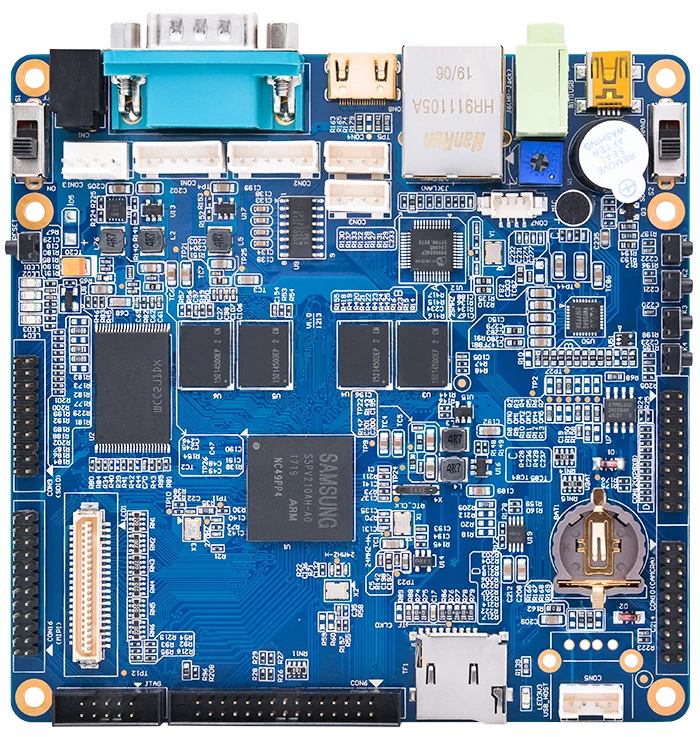

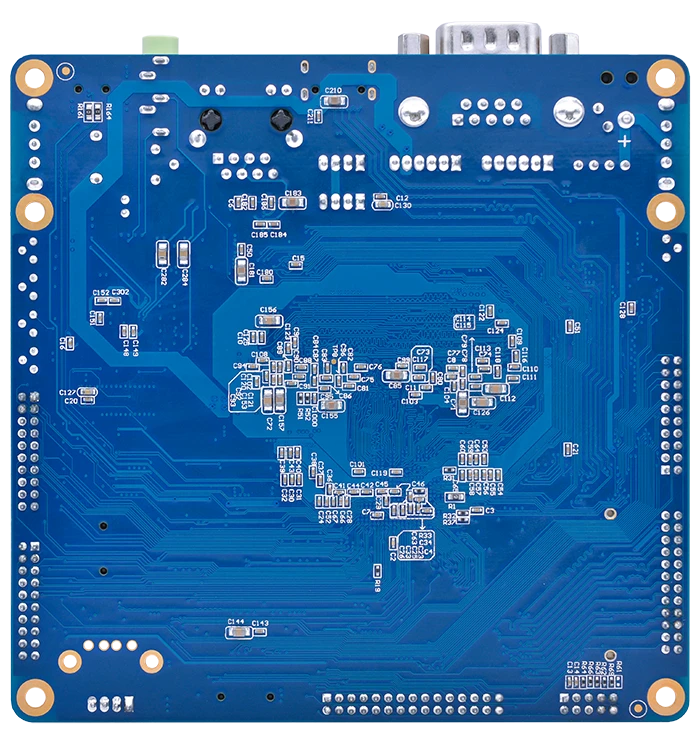

MINI210S is a tiny and affordable single board computer (SBC) that allows you to browse the internet, play games, watch videos, etc.
This SBC included a Samsung S5PV210 processor with 512MB RAM, 1 GB SLC NAND Flash. Additional storage can be added with a microSD card or a USB hard drive. The MINI210S can perform many of the tasks done by regular computers even though it is much smaller. With the compact design, fanless CPU, and low power consumption, for some applications it can be a substitute for the regular sized desktop PC.
Cortex-A8 1GHz CPU, various data communication (WiFi/ Bluetooth/ 3G/ Ethernet), optional operation system (Andrdoi/Linux/WinCE), multi-size LCD supported, with extra-large storage capacity and integrated with camera to satisfy multi-function in financial and industrial application and TMS terminal management.
| Specifications | |
|---|---|
| SoC | Samsung ARM Cortex-A8 S5PV210AH-A0 processor @ 1GHz |
| GPU | PowerVR SGX540 |
| Memory | 512MB DDR2 |
| Storage | 1GB NAND Flash Micro SD slot |
| Power Supply | DC 5V@2A via Power socket (DC-23B) or 4-pin header. |
| USB | USB OTG 2.0, USB Host 2.0 (USB-AF or 4pin header) |
| Connectivity | 10/100 Mbps Ethernet RJ45 port via DM9000AEP Optional SDIO WiFi |
| UART | 1x RS232 (COM0, DB9) 4x TTL (CON1/CON2/CON3/CON4, pin-header). The signals of COM0 and CON1 are multiplexed. |
| Video Output | HDMI 1.3, 1080p@30fps 41-pin RGB LCD (up to 1024 * 768) |
| Audio | 3.5mm audio stereo output jack 8-channel audio via HDMI 8Ω 1W speaker integrated microphone |
| Camera(optional) | 20-pin header for CMOS Camera |
| GPIO | 30-pin header. Included GPIO, AD input, SPI, I2S, PWM |
| Keypad | 20-pin header for 8*8 matrix Keypad |
| Keys & Switch | 1x Reset Key, 4x User Keys 1x Power switch (S1) for ON/OFF, 1x Boot switch (S2) for BOOT Mode selection. |
| JTAG | 10-pin header for debugging. |
| RTC | External lithium battery |
| Dimensions | 110 x 110 mm |

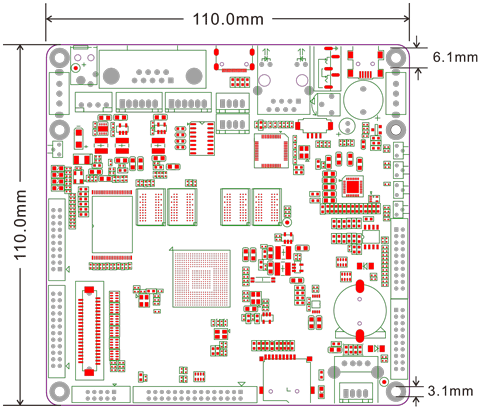

PCB Dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Android4.0.3 | Superboot210 | Main functions: 1. Flash and install (YAFFS2) system via SD card 2. Detect booting mode (SD/NAND) 3. Display LCD info, hardware configurations, installation process |
|
| Kernel and drivers | Kernel version | Linux 3.0.8 | |
| Drivers | Watchdog, RTC, LED, User key, SPI, I2C, PWM, ADC, LCD&TP(4.3”/ 5”/ 7”/ 8”/ 10”), backlight, USB HOST, USE Device, SD, UART, WiFi, Audio, Ethernet (DM9000), FIMC, JPEG, MFC, CMOS Camera, HDMI, 2D/3D accelerometer, USB-to-UART, USB 3G | ||
| File System | format | YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32 | |
| Embedded GUI | Android4.0 | Browser, Calculator, Calendar, Camera, Clock, Email, Gallery, Message, Phone, Mediaplayer, Music, Record, ES File Explorer, etc. | |
| Network protocol | TCP/IP protocol, Telnet, FTP Client/server, boa web server | ||
| Cross-compiler | arm-linux-gcc-4.5.1-v6-vfp | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux3.0.8 | Superboot-210 | Main functions: 1. Flash and install (YAFFS2) system via SD card 2. Detect booting mode (SD/NAND) 3. Display LCD info, hardware configurations, installation process |
|
| Kernel | Version | Linux kernel 3.0.8 | |
| Driver | Watchdog, RTC, LED, Use key, SPI, I2C, PWM, ADC, TP, Backlight, LCD(4.3”/ 5”/ 7”/ 8”/ 10”), USB HOST, USB Device, SD, WiFi, Audio, Ethernet, FIMC, JPEG, MFC, COMS Camera, HDMI, 2D/3D accelerometer, USB-to-UART, USB 3G | ||
| File System | format | YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32 | |
| Embedded GUI | Qt/Embedded | Qtopia 2.2.0, Qt/Embedded-4.7.0, Qt-Extended-4.4.4 | |
| Application | Clock, Phone, Message, Camera, Record, Browser, SMPlayer, Music, Calculator, Terminal, File Manager, etc. | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| WinCE6.0 R3 | Superboot210 | Functions: 1. Read file from the SD card (FAT format), and the file path can be customized 2. Flash NK.bin via SD card 3. Change Boot Logo via SD card 4. Display LCD info, hardware configurations, installation process 5. Detect booting mode (SD/NAND) |
|
| System | Drivers | RTC, Watchdog, MLC/SLC Nand, LCD, TP, Backlight, UART, Ethernet (DM9000), Audio (WM8960), SD, USB HOST, LED, User key, PWM, ADC, SPI, I2C, HDMI | |
| Application | HDMI, LED Control, User-key Test, Recorder, Network Configuration Utility, PWM Buzzer, Serial Assistant, Backlight, etc. | ||
| Development Environment | Visual Studio 2005 | ||
