* Processor: Rockchip RK3399. Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @ 1.4GHz
* RAM: 4GB
* Storage: 8GB

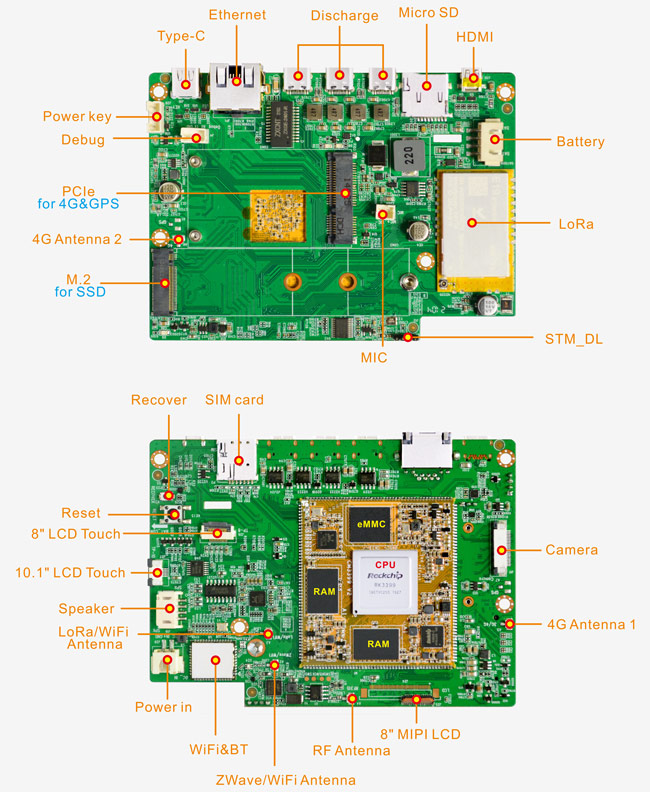

* Interfaces: GbE, USB Type-C, HDMI, 3x for power out (discharge), Audio, Battery, MIPI LCD, Camera, Speaker, MIC, Micro SD, PCI-E(4G), M.2 slot(SSD), SIM slot, Serial port(Debug), etc.
* Operating system: Android 9.0
* Dimensions: 120 x 88 mm
Rockchip RK3399 is a low power, high performance processor for computing, personal mobile internet devices and other smart device applications. Based on Big.Little architecture, it integrates dual-core Cortex-A72and quad-core Cortex-A53 with separate NEON coprocessor.

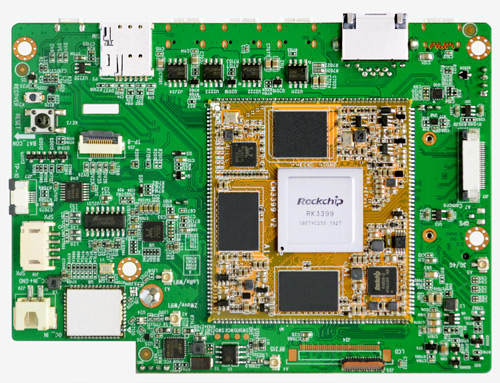

Boardcon RK3399 Smart Home Device is powered by Rockchip RK3399 and equipped with 4GB RAM, 8GB eMMC flash with interfaces including PCIe, SATA, Gigabit Ethernet, HDMI 2.0, MIPI DSI/CSI and more.
This RK3399 device runs Android9.0 operating system, and supports WiFi&BT, LoRa, RF315 and 4G&GPS module. it can be used in Intelligent Control, Remote monitoring, Solar energy systems, etc.
Specifications | |
---|---|
SoC | - Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU - 28nm HKMG process - 1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster |
GPU | - ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc. - Supports AFBC (ARM Frame Buffer Compression) |
Memory | 4GB LPDDR4 |
Storage | - 8GB eMMC flash - MicroSD slot - 1x M.2 SSD interface |
Power | DC 12V/3A Power Adapter, or 3.7V/24A Li-Battery |
USB | 4x USB Type-C. 1x USB3.0 for download, 3x for power out (discharge) |
Audio | Realtek ALC5651 Audio CODEC. 2-pin connector for MIC, 4-pin connector for Speaker |
Display | - HDMI 2.0 for 4K@60Hz with HDCP 1.4/2.2 - MIPI LCD |
Connectivity | - Gigabit Ethernet port (RJ45) via Realtek RTL8211E - 2.4GHz/5GHz 802.11 a/b/g/n/ac WiFi. Bluetooth 4.1 - LoRa 915MHz - RF315 - Optional 4G module (with GPS) via mini PCIe socket + SIM card slot |
UART | 1x 3pin connector for debug |
Buttons | Recover, Reset |
Camera (optional) | 1x MIPI CSI, 24pin FPC connector |
Dimensions | Baseboard - 120 x 88 mm; CPU board - 55 x 50 mm |
PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android 9.0 | Boot | U-Boot 2017.09 | U-Boot 2017.09 |
Kernel | Version | linux-4.4.167 | |
Drivers | HDMI | Support 4K, 1080P, 720P, 480P resolution | |
Audio | Audio in/out | ||
SD card | Micro SD card | ||
USB | USB 2.0 | ||
Ethernet | 10/100/1000 Mbit/s Ethernet | ||
Camera | 13 Megapixels camera module | ||
Dual WiFi | Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 5.0 | ||
Serial Port | Debug serial | ||
PCI-E | Support nvme SSD, 4G, GPS | ||
eMMC | Support eMMC 5.1 | ||
charger | Charger GPIO detect | ||
LCD | 8-inch mipi LCD with capacitive touch screen | ||
RF315 | EV1527 decode | ||
Battery | Cw2015 battery detect | ||
LoRa | LoRa 915MHz | ||
Embedded GUI | Android9.0 | Support Files, Clock, Browser, Gallery, Calculator, Camera, Email, Explorer, Video player, Music etc. | |
Cross-compiler Environment | ubuntu-16.04, java-8-openjdk-amd64.tar.bz2 | ||
Debug Tools | SecureCRT, AndroidTool.exe, ADB |
