* Processor: Rockchip RK3576. 4x Cortex-A72 cores @ 2.2 GHz, 4x Cortex-A53 cores @ 1.8 GHz
* NPU: 6 TOPS
* RAM: 4GB
* Storage: 32GB
* Interfaces: 3x UART, Debug, USB3.0 Host, USB Type-C, MIPI DSI, HDMI in, HDMI out, 3x MIPI CSI, Micro SD, M.2, 2x Ethernet, RS485, CAN, Audio I/O, GPIO, etc.
* Operating system: Debian 12, Buildroot
* Board size: 110mm x 85mm
* Expansion Module: WiFi, camera, 4G, 10.1" LCD

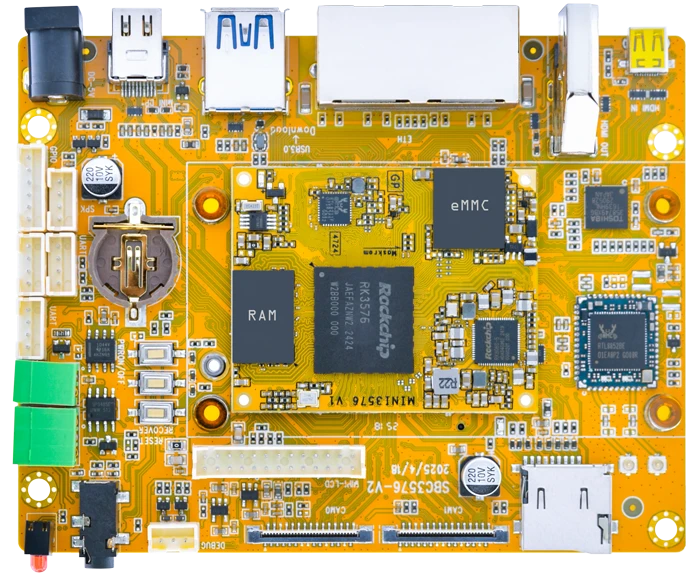

The SBC3576 single board computer is powered by the Rockchip RK3576 processor. Designed with a modular approach, it features a separable design consisting of a baseboard and a core board, offering enhanced flexibility and ease of maintenance. This architecture makes the SBC3576 an ideal choice for a wide range of applications requiring high performance and reliability.

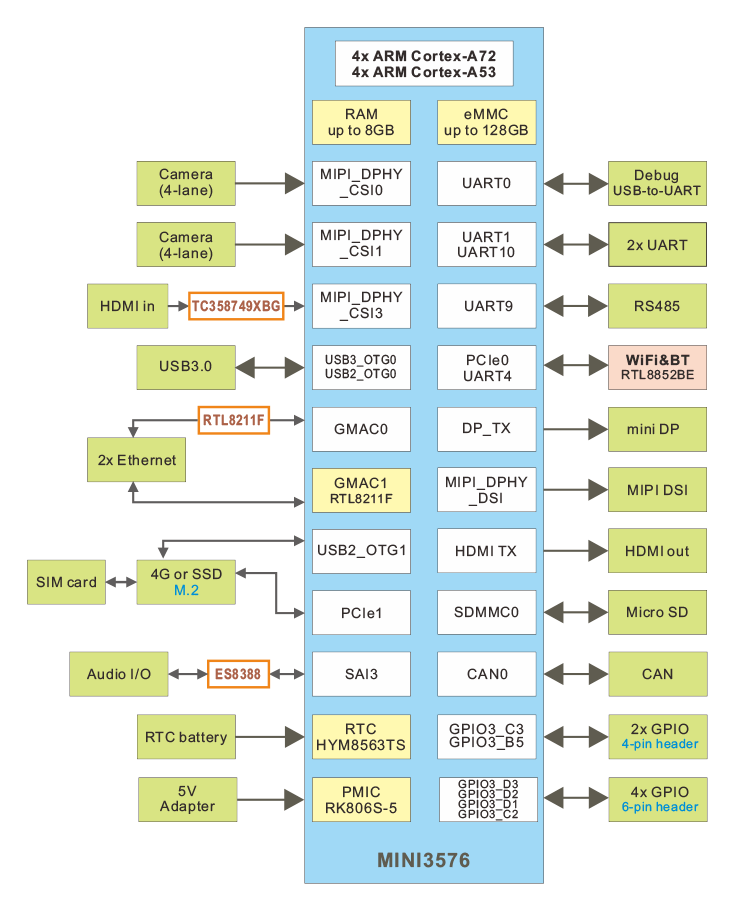

Rockchip RK3576 is an Octa-core SoC designed for advanced multimedia and IoT applications. The RK3576 boasts 4x Cortex-A72 + 4x Cortex-A53 CPU and ARM Mali G52 MC3 GPU, ensuring smooth handling of complex tasks such as high-definition video playback, real-time data processing, and intensive graphics rendering. Its energy-efficient design also contributes to lower power consumption, making it suitable for deployment in environments with stringent energy requirements.
The separation of the baseboard and core board allows for easy upgrades and customization, ensuring that the SBC3576 remains relevant and adaptable to future technological advancements. Additionally, its compact form factor makes it an excellent fit for space-constrained environments, while its robust construction ensures reliability in demanding conditions.
Applications
• Digital Signage: With support for high-resolution displays and smooth video playback, it's perfect for creating engaging digital signage solutions.
• Industrial Automation: Its industrial interfaces and robust design make it suitable for automation systems and control panels.
• IoT Devices: The integration of WiFi 6 and Bluetooth 5.2 facilitates seamless connectivity in IoT networks, ideal for smart home devices, sensors, and monitoring systems.
• Automotive Infotainment: With support for multiple cameras and high-quality audio/video outputs, it enhances the infotainment experience in vehicles.
• Edge Computing: The powerful processor and versatile connectivity options make it well-suited for edge computing tasks, processing data closer to its source for faster insights.

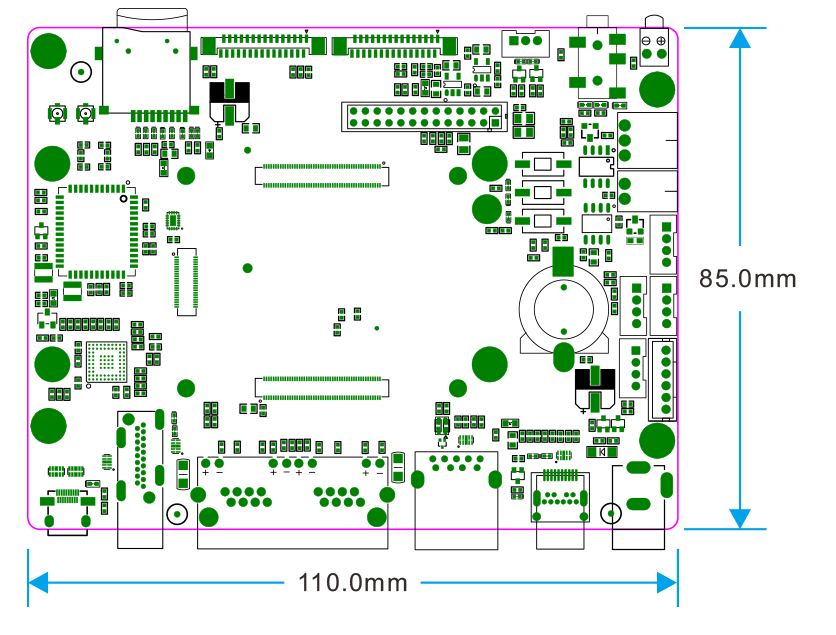

PCB Dimension
