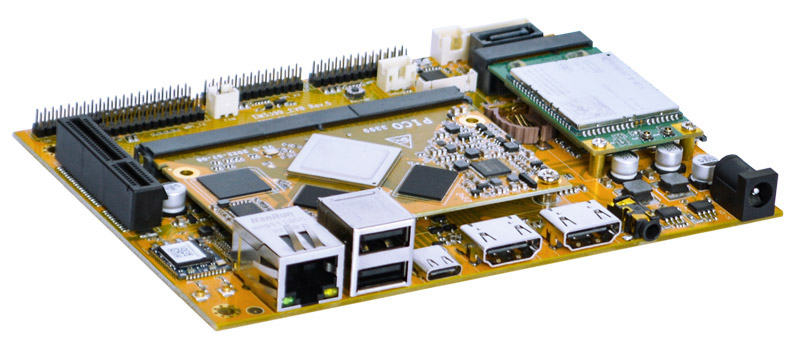

The Boardcon EM3399 is a hexa-core single-board computer based on Rockchip RK3399 processor with two Cortex A72 cores clocked at up to 1.8GHz, and four Cortex A53 cores teamed with a Mali-T860MP4 GPU, featuring 3G/4G and WiFi/BT module, supporting 4K H.265 video decoding up to 60 fps, HDMI in/output, USB Type-C, Gigabit Ethernet, Android 11 operating system, and target to 2in1 Android tablets, VR, TV-BOX, laptops, in-vehicle navigations, communications and other terminals covering industrial and consumer applications, including smart Device, advertising devices / the all-in-one machines, POS systems, vehicle control terminals, thin-clients, VOIP video conferencing security / monitoring / policing, IoT, as well as other fields.
The platform is implemented with a PICO3399 computer-on-module providing most of the functions and interfaces, and EM3399_C carrier board providing connectors and several additional functions.
The processor of EM3399 provides terminals with faster operation speed and better visual effects by utilizing its powerful CPU, GPU, faster interface standards and transfer speeds, 4K@60fps10-bit video playback and output capabilities that support H.265/VP9 encoding, better image decoding, rich game engines, and 3D graphics processing capabilities.
Specifications |
SoC |
· Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU. Frequency is over 1.8GHz (Big cluster)
· 28nm HKMG process
· 1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster |
GPU |
· ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc.
· Supports AFBC (ARM Frame Buffer Compression) |
Memory |
4GB |
Storage |
8GB eMMC (up to 128GB)
Micro SD Card slot
mPCIe socket (SSD. Shared with 4G module) |
Power |
12V/3A DC input jack |
Connectivity |
10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211E controller
2.4G/5GHz WiFi (802.11 a/b/g/n/ac) with Bluetooth 5.0
mPCIe socket with SIM card port to support 4G&GPS module |
USB |
2x USB2.0 Host, 1x USB Type-C |
UART |
Serial port for debug, 3-pin connector |
Display |
eDP1.3, 40-pin header
4-lane MIPI DSI, 26-pin header
HDMI2.0, up to 4Kp60 |
HDMI IN |
Adopt Toshiba TC358749XBG bridge device |
Camera(optional) |
2x MIPI Camera, 26-pin header |
Audio codec |
ALC5651 Audio chip, 3.5mm audio I/O jack |
RTC |
Real Time Clock, powered by external lithium battery |
Buttons |
3x User Buttons, for Recover, Power, Reset |
PCI-E x4 |
Can be used to connect adapter, such as USB, Network card, Disk array, etc. |
GPIO |
5 groups of GPIO (GPIO0~GPIO4), total 122 GPIOs |
Dimensions |
145 x 100 mm |
Block Diagram
PCB Dimension
OS |
Item |
Feature |
Description |
Android 11 |
Boot |
uboot 2017.09 |
rk3399_loader_v1.27.126.bin |
Kernel |
Version |
Linux 4.19.232 |
Drivers |
HDMI |
Support 4K,1080P, 720P, 480P resolution |
Audio |
Audio in/out |
SD card |
Micro SD card |
USB |
USB2.0 Host |
Ethernet |
10/100/1000 Mbps Ethernet |
eDP |
Support eDP 1.3 10.8Gbps |
MIPI_TX |
Support MIPI LCD |
Camera |
13 Megapixels, OV13850 module |
WIFI |
Wireless- 2.4G/5GHz 802.11 a/b/g/n/ac |
Bluetooth |
Bluetooth 5.0, RTL8822CS |
Serial Port |
Debug |
PCI-E |
Support 4G&GPS, SSD |
GPU |
Support AFBC |
eMMC |
Support eMMC 5.1 |
Embedded GUI |
Android 11 |
Support Clock, Lightning, Gallery, Calculator, Camera, Email, Explorer, Video, Music etc. |
Cross-compiler Environment |
ubuntu-18.04, java-8-openjdk-amd64.tar.bz2 |
Debug Tools |
SecureCRT, AndroidTool.exe, ADB |
OS |
Item |
Feature |
Description |
Android7.1.2 |
Boot |
uboot 2017-06-09#1.09 |
rk3399_loader_v1.08.109.bin |
Kernel |
Version |
Linux 4.4.126 |
Drivers |
HDMI |
Support 4K,1080P, 720P, 480P resolution |
Audio |
Audio in/out |
SD card |
Micro SD card |
USB |
USB2.0 host |
Ethernet |
10/100/1000 Mbps Ethernet |
eDP |
Support eDP 1.3 10.8Gbps |
MIPI_TX |
Support MIPI LCD |
Camera |
13 Megapixels, OV13850 module |
WIFI |
Wireless- 2.4GHz/5GHz 802.11 a/b/g/n/ac |
Bluetooth |
Bluetooth 5.0, RTL8822CS |
Serial Port |
Debug |
PCI-E |
Support 4G/SSD |
GPU |
Support AFBC |
eMMC |
Support eMMC 5.1 |
Embedded GUI |
Android7.1.2 |
Support Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc. |
Cross-compiler Environment |
ubuntu-14.04, java-8-openjdk-amd64.tar.bz2 |
Debug Tools |
SecureCRT, AndroidTool.exe, ADB |
OS |
Item |
Feature |
Description |
Debian |
Boot |
uboot 2017.09 |
MiniLoaderAll.bin |
Kernel |
Version |
Linux 4.4.167 |
File system |
File system |
Debian |
Drivers |
Audio |
Audio out |
SD card |
Micro sd card |
USB |
USB2.0 Host |
Ethernet |
10/100/1000 Mbps RJ45 |
WIFI |
Wireless- 2.4GHz/5GHz 802.11 a/b/g/n/ac |
Bluetooth |
Bluetooth 5.0, RTL8822CS |
3D acceleration |
Support |
LCD |
MIPI LCD(1280*800) |
Type-C |
USB Type-C Download. Support type-C to RJ45/RS232/USB HOST |
PCI-E |
Support 3G/4G/SSD |
HDMI |
Support 1920x1080P resolution |
RTC |
Real time keeping |
Hard decoding play |
Support |
GPIO |
Support |
KEY |
Recovery and reset key |
Serial port |
Debug |
GPU |
Support AFBC |
eMMC |
Support eMMC 5.1 |
