Products
* Processor: Rockchip RK3399. Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @ 1.4GHz
* RAM: 4GB
* Storage: 8GB

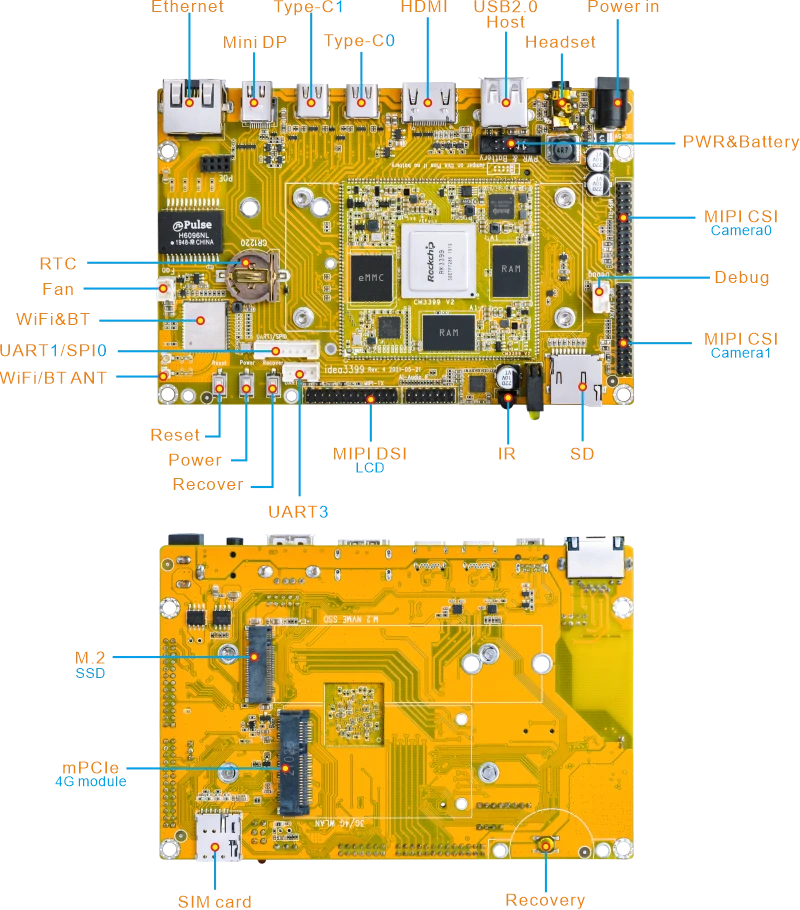

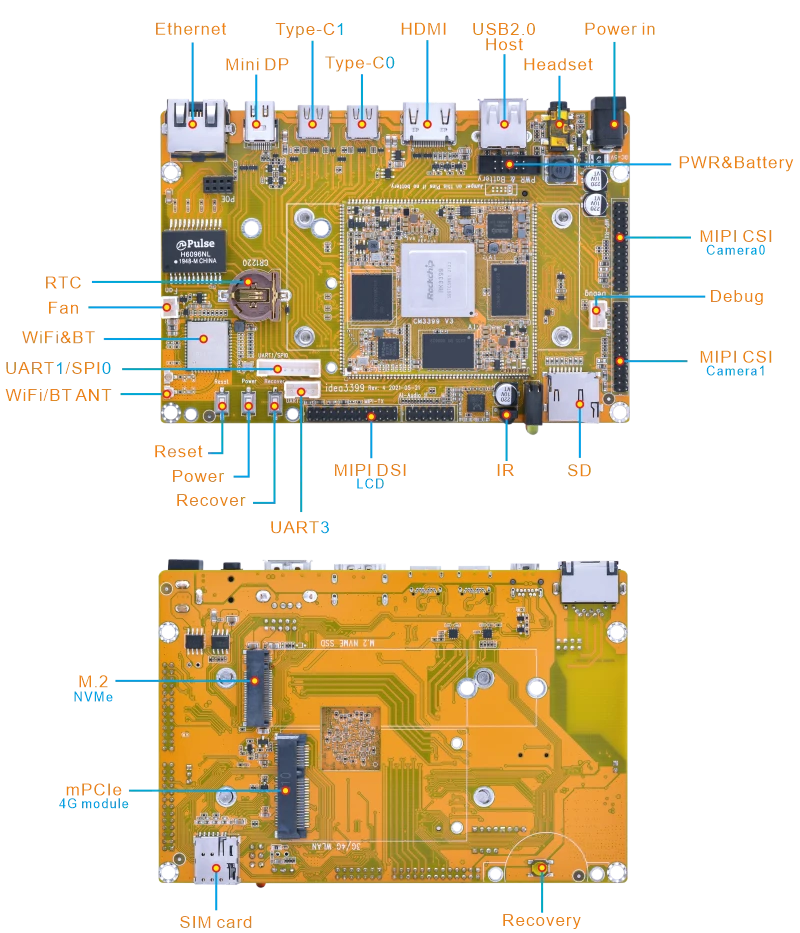

* Interfaces: GbE, mDP, 2x Type-C, HDMI, USB2.0 Host, Audio, PWR&Battery, MIPI DSI, 2x MIPI CSI, 3x UART, SPI, POE, Micro SD, mPCIe, M.2, SIM slot, etc.
* Operating system: Android 11, Android 7.1, Debian 11, Buildroot
* Dimensions: 135 x 90 mm
* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD

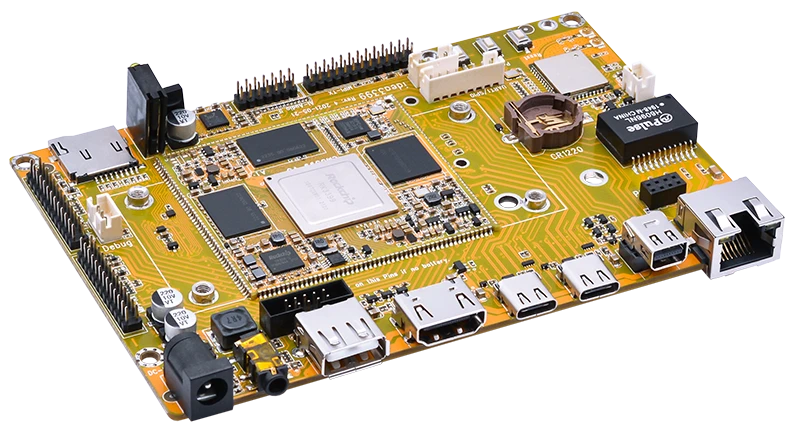

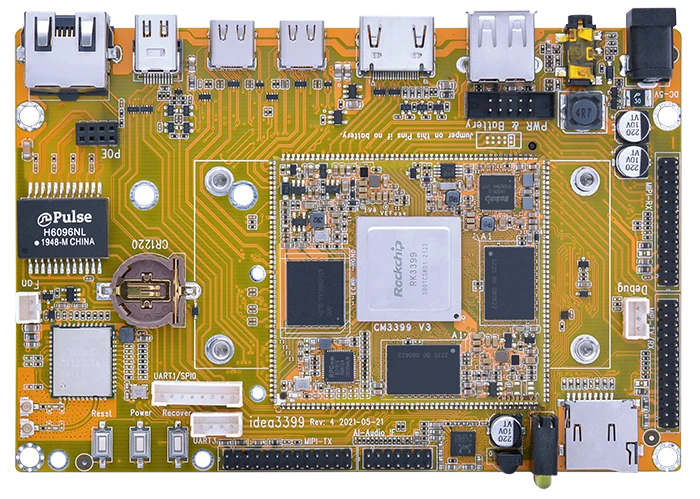

Idea3399 is a single board computer equipped with RK3399 Cortex-A72 + Quad Cortex-A53 processor coupled with 4GB RAM, 8GB eMMC, an mPCIe slot for cellular connectivity, and other interactive interfaces geared towards to AI and IoT Applications.
Display features include a mDP port, HDMI and MIPI LCD. Idea3399 adopts ALC5651 dual I2S interface audio codec that supports analog/digital input. The 2x USB3.0 Type C can be converted to HDMI/USB3.0/USB2.0. In addition, Type C0 also can be used for debugging.
The board is available with a WiFi/BT module with dual-band 802.11ac/a/b/g/n and Bluetooth 4.1 connectivity.
The Idea3399 SBC is equipped with a 4G model(optional) that delivers 100Mbps downlink and 50Mbps uplink data rates, and GSM/GPRS networks to ensure that it can connect even in remote areas devoid of 4G or 3G coverage. The model also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity positioning GPS+GLONASS receiver.
Other expansion features include a M.2 slot, 2x MIPI Cameras, MIC Array, 8-pin PoE connector, IR in, etc.
| Specifications | |
|---|---|
| SoC | · Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU · 28nm HKMG process · 1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster |
| GPU | · ARM Mali-T860MP4 with support for OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc. |
| Memory | 4GB LPDDR4 |

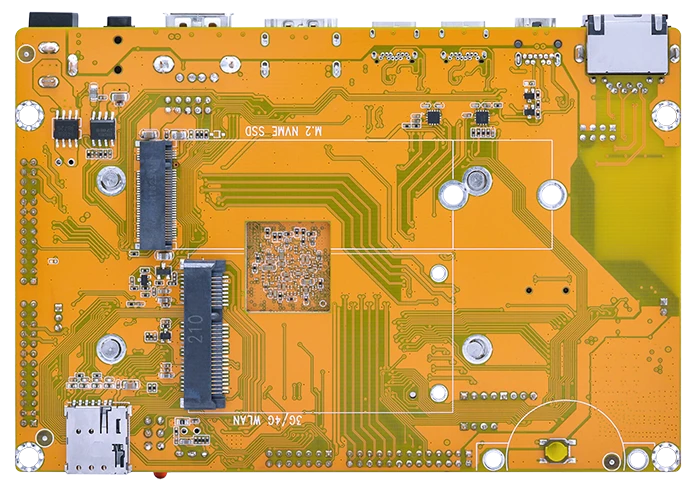

| Storage | 8GB eMMC (up to 128GB) Micro SD Card slot M.2 socket |
| Power | 5V/3A DC input jack 3.7V Li-Battery, 10-pin connector |
| Connectivity | 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211E controller 2.4G/5GHz WiFi (802.11 a/b/g/n/ac) with Bluetooth 4.1 mPCIe socket with Nano SIM card port to support 4G&GPS module |
| Display | mini Display Port HDMI2.0, up to 4K@60Hz MIPI DSI, up to 1080@60Hz |
| Audio | Realtek ALC5651 Audio Codec. 3.5mm jack for headphone; 14-pin header for MIC Array. |
| USB | 1x USB2.0 Host, 2x USB3.0 Type-C |
| Camera (optional) | 2x MIPI camera. 26-pin header |
| IR | IR in |
| UART | 4-wire UART1(Multiplexed signal with Ethernet), 1x 8pin connector (J13); 3-wire UART2, 1x 3pin connector. For debug; 4-wire UART3(Multiplexed signal with Ethernet), 1x 4pin connector |
| SPI | 8-pin connector (J13) |
| Buttons | 3x Buttons for Recover, Power and Reset |
| RTC | 3V battery, CR1220 |
| POE | 8-pin connector. Requires separate PoE adapter |
| Dimensions | 135 x 90 mm |
Block Diagram
PCB Dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Android7.1.2 | Boot | uboot 2014.10 | rk3399_loader_v1.17.115.bin |
| Kernel | Version | Linux 4.4.126 | |
| Drivers | HDMI | Support 4K, 1080P, 720P, 480P resolution | |
| Audio | Audio in/out | ||
| SD card | Micro SD card | ||
| USB | USB mouse, USB keyboard, USB storage etc. | ||
| Ethernet | 10/100/1000 Mbps Ethernet | ||
| mDP | Support | ||
| Camera | 13 Megapixels, OV13850 model | ||
| WiFi | Wireless - 2.4GHz/5GHz 802.11 a/b/g/n/ac | ||
| Bluetooth | Bluetooth 4.1, AP6356 module | ||
| Serial Port | Debug | ||
| PCI-E | Support SSD | ||
| GPU | Support AFBC | ||
| eMMC | Support eMMC 5.1 | ||
| 4G | EC20 LTE | ||
| GPS | EC20 | ||
| Type-c *2 | Type-C0: convert to HDMI/USB Host Type-C1: convert to USB Host |
||
| IR | IR in | ||
| LCD | 10.1-inch MIPI LCD with touch screen | ||
| Embedded GUI | Android7.1.2 | Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc. | |
| Cross-compiler Environment | ubuntu-16.04, java-8-openjdk-amd64.tar.bz2 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Buildroot | Boot | U-Boot 2017.09 | rk3399_loader_v1.24.126.bin |
| Kernel | Version | Linux 4.19.193 | |
| Drivers | HDMI OUT | Support up to 4K@60Hz | |
| MIPI DSI | Support up to 1080@60Hz | ||
| Audio | headphone(in/out) | ||
| USB2.0 | Support | ||
| USB Type-C | 2x USB Type-C. Support convert to HDMI/USB | ||
| Ethernet | Gigabit Ethernet | ||
| SD card | Micro SD card | ||
| WiFi | Wireless-2.4G/5GHz 802.11 a/b/g/n/ac | ||
| Camera | OV13850 model | ||
| PCIE | PCIE NVME SSD | ||
| FAN | Support | ||
| Serial Port | Debug | ||
| RTC | PCF8563TS | ||
| Embedded GUI | QT | qfm, qplayer, qsetting, multivideoplayer, qcamera | |
| Cross-compiler Environment | ubuntu-18.04 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| Datasheet |
|
|
|
|
|
|
| Reference Manual |
|
|
| Tools |
|
|
|
|
|
|
|
|
|
|
|
|
| Expansion Module | Module Detail | Android | Debian | Buildroot |
|---|---|---|---|---|
 4G&GPS |
Quectel EC20 Mini PCIe Multi-mode LTE Module | √ | √ | - |
| WiFi&Bluetooth |
AP6356S Module. 2.4/5G WiFi + Bluetooth 4.1 | √ | √ | √ |
 Camera |
OV13850 module, 13-Megapixel | √ | √ | - |
| MIPI LCD |
10.1-inch Capacitive Touch Screen, 1280 x 800 | √ | √ | √ |
All Technologic Systems products come with:
* 6~12months full warranty
* Technical support
* Computers have pre-installed OS
* Free system software
* Complete documentation, updates through website
Please configure your product using the table below and then add it to your cart. If you have any questions, please contact us for assistance.
| Product | Item | Price(Qty1) | Buy Now |
|---|---|---|---|
| Idea3399 | Idea3399 (4GB RAM, 8GB eMMC) | USD170.00 | Add to cart |
| 4G Module (WCDMA, with GPS) | USD30.00 | Add to cart | |
| 10.1'' LCD with capacitive touch (MIPI) | USD85.00 | Add to cart |
1. modify the file kernel\arch\arm64\boot\dts\rockchip\rk3399-linux.dtsi
chosen {
bootargs = "earlycon=uart8250,mmio32,0xff1a0000 console=ttyFIQ0 rw root=PARTUUID=614e0000-0000 rootfstype=ext4 rootwait coherent_pool=1m";
};
2. recompile kernel
3. reflash kernel to the board.
It is recommended to back up the original rk3399-linux.dtsi before modification.
upgrade_tool is a firmware upgrade tool for Linux. Flash image requires superuser privileges.
1. Download and execute upgrade_tool first.
2. Put the firmware files and upgrade_tool in the same directory.
3. Connect the USB OTG port from the board to your PC, press the recovery button from your board, and connect the power, wait a few seconds and release the button.
4. Use the commands to flash image.
Basic Commands
//List devices upgrade_tool ld //Download boot upgrade_tool db rkxxloader.bin //Flash the partition table upgrade_tool di -p parameter.txt //Flash single partition image upgrade_tool di -k kernel.img //Falsh multiple partition images upgrade_tool di -u uboot.img -b boot.img //Flash the partition image with no defined abbreviation, you need to specify the partition name. //Take the vendor partition as an example upgrade_tool di -vendor vendor.img //When ab partition are used, it also needs to be handled in undefined cases. //Take boot_a and boot_b as example upgrade_tool di -boot_a boot.img -boot_b boot.img //Flash loader and reset upgrade_tool ul rkxxloader.bin //Upgrade firmware and reset upgrade_tool uf update.img //Erase device upgrade_tool ef rkxxloader.bin
