1 Configuration List
Part |
Description |
|---|---|
SBC1126B |
SBC1126B SBC, built-in WIFI&BT module, without panel |
Power adapter |
12V/3A |
USB-A cable |
Used to download |
Serial adapter module |
USB-to-UART |
Ethernet cable |
1.5M Ethernet crossover cable |
WiFi antenna |
Flexible uFL 2.4GHz antenna |
SDK |
User manuals, Schematics, Images, etc. |
2 Accessories (optional)

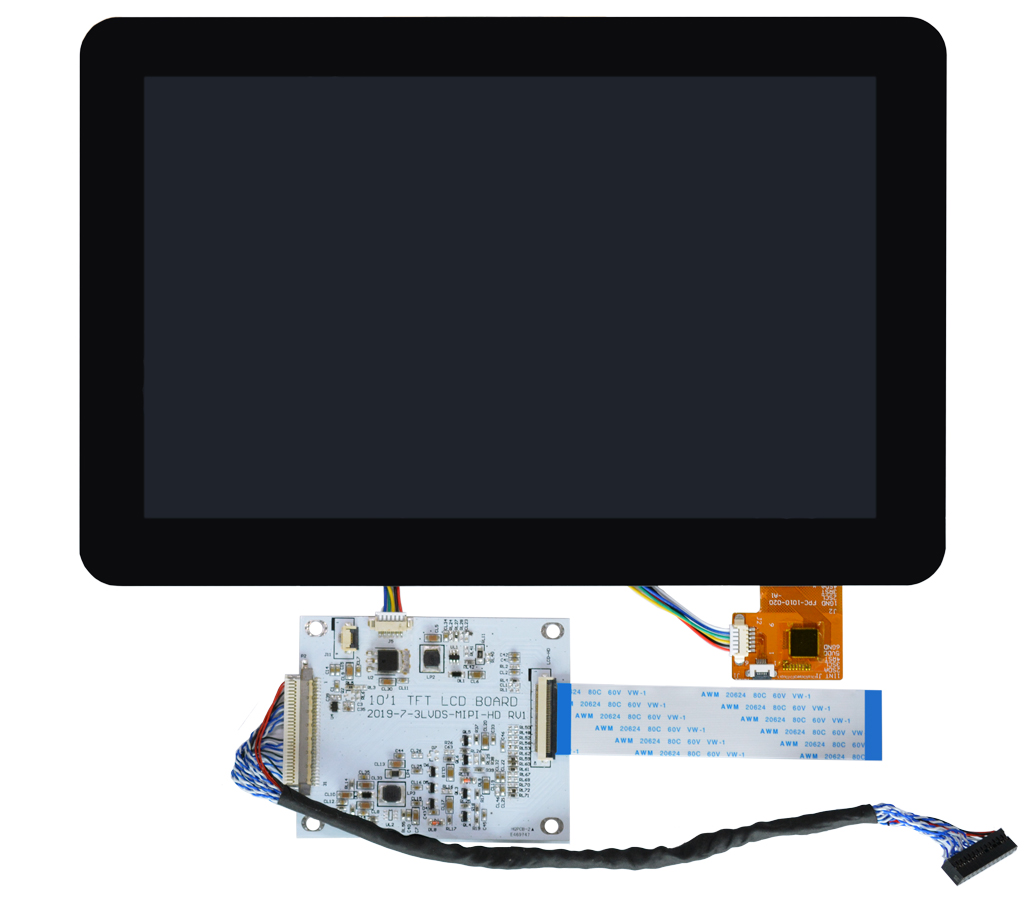

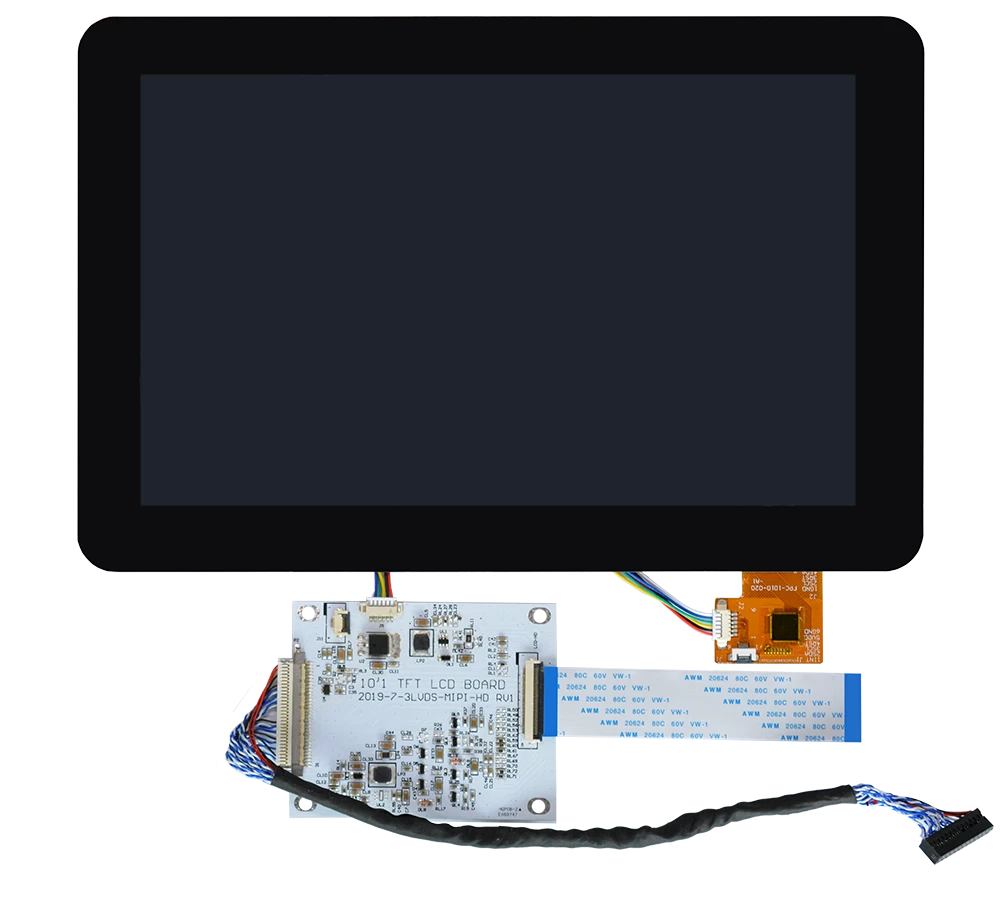

Panel
Item |
Parameter |
|---|---|
Model |
K101-IM2KYL02-L3 |
Display interface |
MIPI |
Resolution |
800 x 1280 |
Number of colors |
16.7M |
Display mode |
Normally Black |
Pixel arrangement |
RGB Vertical stripe |

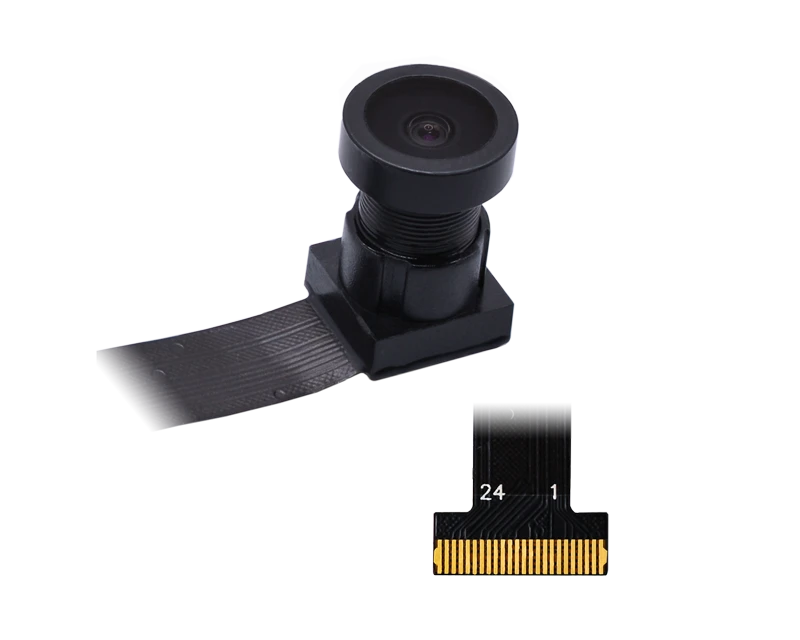

Camera
Item |
Parameter |
|---|---|
Model |
SC200AI |
Power supply |
analog: 2.8V, digital: 1.2V, I/O: 1.8V |
Optical format |
1/2.8 Inch |
Frame Rate |
60 Frames/sec |
Interface |
MIPI |
Pixels |
2 megapixel (1928 x 1080) |
Pixel Size |
2.9 µm x 2.9 µm |
